25 Tons Safety Sliding Line Rail Transfer Cart for Mold Handling
In modern factories, efficiency and precision are the keys to production. Our 25 tons safety sliding line powered rail transfer cart is specially designed to meet this demand, and it performs excellently in the transfer task of molds in the main production workshop.
Advantage: In a production line hundreds of meters long, molds need to be transferred from one workstation to another. Traditional methods may require multiple labors and time, while our transfer cart powered by a sliding contact line, can work without restrictions, unaffected by usage time and distance. The wireless remote control operation allows operators to easily control the carrier, ensuring operational flexibility and safety.

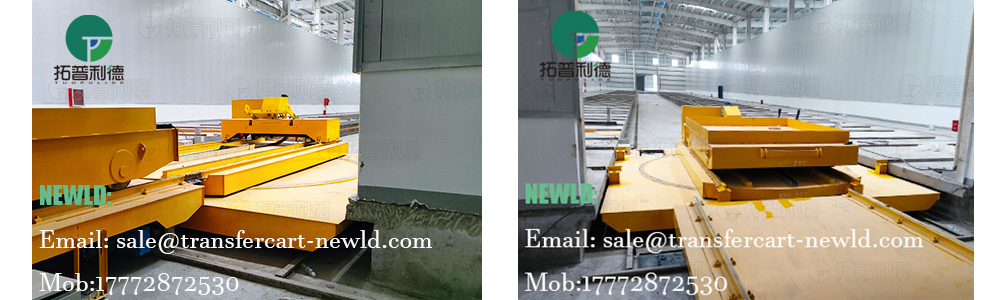

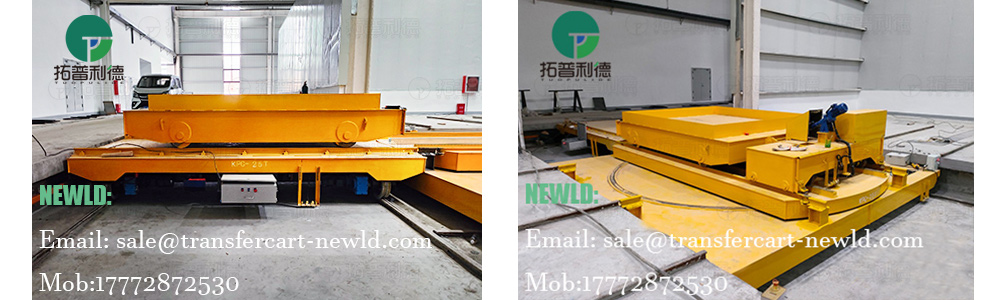

Structure: The cart's body is cleverly designed with two layers. The lower layer is the core rail transfer cart table, with a built-in 360-degree rotating turntable to ensure handling flexibility. The upper layer is an automatic flipping arm, which is powered by a moving cable and uses a hydraulic rod to achieve autonomous loading and unloading, greatly improving loading and unloading efficiency.
Application: To achieve precise docking, the rail transfer cart is equipped with rails at the front and rear that match the dimensions of the production workstations.
When the cart arrives at the target production workstation, the operator only needs to adjust the automatic flipping arm via wireless remote control to align it with the workstation, and then perform automatic loading and unloading.
After completing the task, the transfer cart can also dock with the electrically driven rail cart of another production line to form a production closed loop, ensuring the seamless connection of the production process.
This rail transfer cart not only has a load capacity of up to 25 tons and dimensions of approximately 4000×4000×1500mm, but its design also takes into account various production environments, meeting your needs in terms of both space constraints and operational convenience. While improving production efficiency, it also ensures operational safety and reliability.
