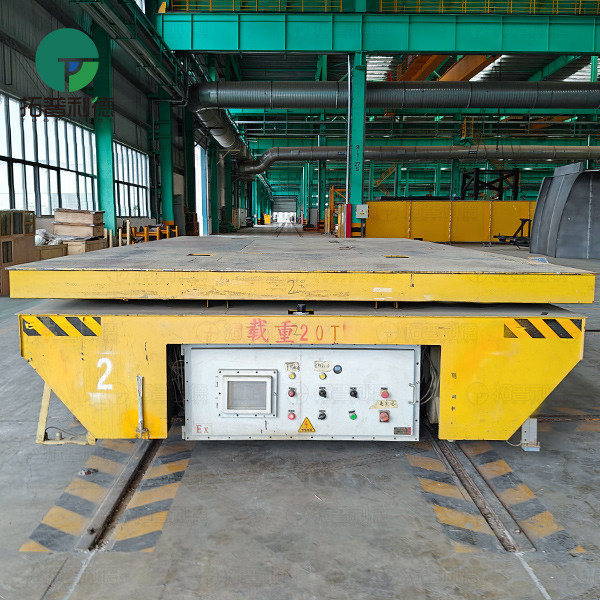

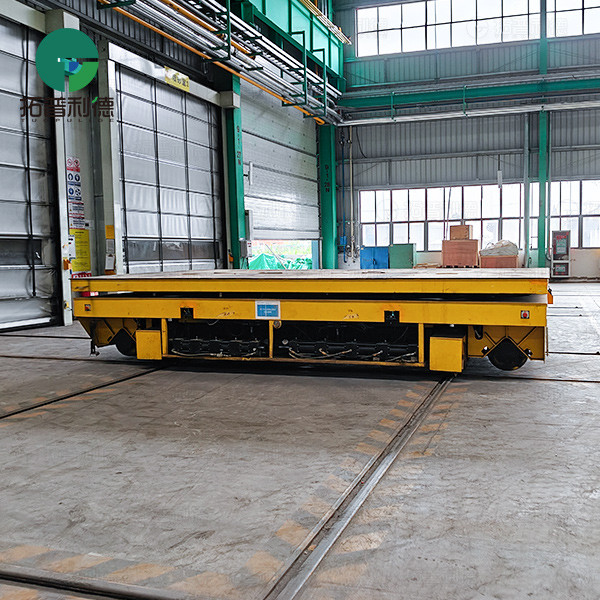

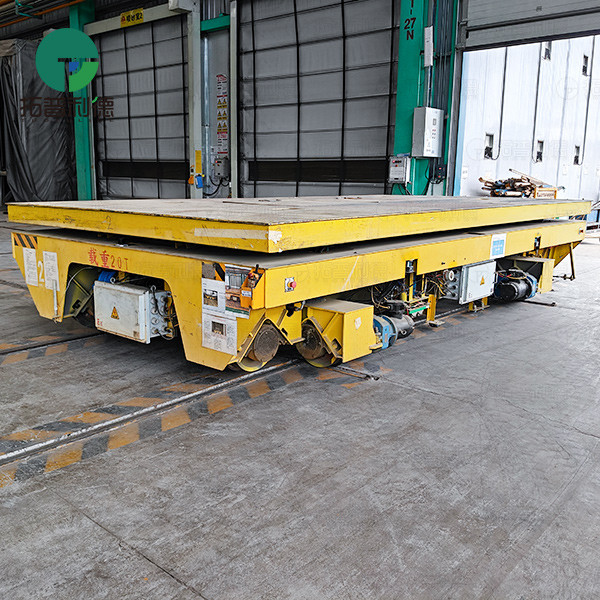

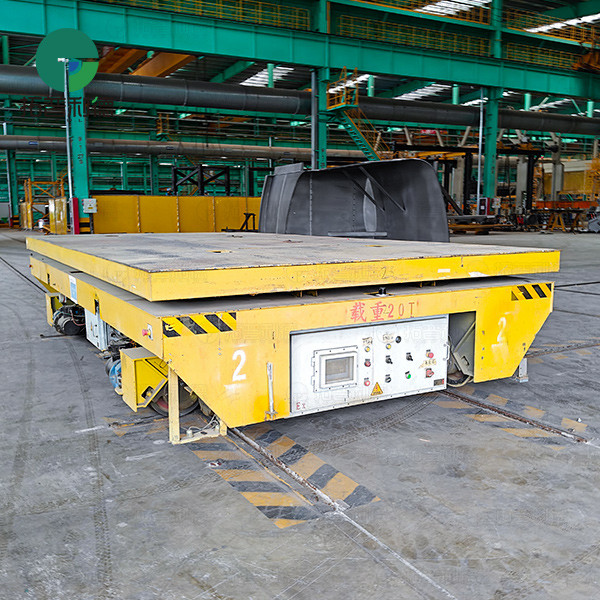

20 Tons Hydraulic Lifting Battery Operated Rail Transfer Cart

Product Brief

The 10 tons battery powered, horizontal and vertical hydraulic lift transfer cart is designed specifically for mold handling in production workshops. It offers unlimited range, environmentally friendly, efficient, and stable solutions for heavy-load transport.

Product Description:
This battery powered intelligent transfer cart features a platform measuring approximately 4500 x 2000 x 800 mm and a robust 10 tons load capacity. Its core function is to achieve linear and lateral movement without relying on fixed rails. Its hydraulic lift system automatically handles mold loading and unloading, as well as precise docking. Designed to withstand high temperatures and wear, the truck is suitable for harsh industrial environments and is a key component for flexible production lines.

Features:
1.Box-beam frame: Provides stable support, ensuring reliable operation even under heavy loads.
2.Intelligent travel system: Equipped with a dual-wheel system for vertical and horizontal movement, it enables full forward, backward, left, and right movement, significantly improving maneuverability and positioning accuracy in confined spaces.

3.Automatic Loading and Unloading Core: The integrated hydraulic lift table provides smooth lifting and strong lifting force, easily lifting and moving heavy molds, truly achieving "on-site loading and unloading."
4. Smart Control Center: Through a wireless remote control combined with an intelligent programmable logic controller (PLC), the operator can precisely control all vehicle movements remotely. The LED display provides real-time information on vehicle status, battery level, fault codes, and other information for easy viewing.

5.Comprehensive Safety: Equipped with an audible and visual warning light (to alert nearby personnel during operation), an emergency stop button (to instantly shut off power in emergencies), and a battery level display (to monitor energy levels in real time and prevent battery failure), this multi-layered safety system is equipped. Cast steel wheels ensure an extremely long service life and wear resistance.

Practical Instructions:
During mold handling in the production workshop, the operator can easily control the transfer cart to the mold placement location using a wireless remote control.
The hydraulic lift table lowers to the desired height, and the automatic loading and unloading mechanism quickly loads the mold onto the table.
The cart then precisely navigates along the rail using its dual-wheel system, moving vertically and horizontally, to the designated location, where the hydraulic lift table unloads the mold.
During the entire process, sound and light warning lights alert surrounding personnel, and the power display screen and LED display screen provide real-time feedback on the equipment status.
In case of emergency, the emergency stop button can be used to immediately stop the operation of the transfer cart.

Product Information:

• Model: KPX-10T
• Load: 10 tons
• Size: 4500*2000*800mm
• Power Mode: Battery
• Control: Remote Control
• Motor: DC Motor
• Running Speed:0-18m/min
