Product Information:

Model: AGV

QTY: 1 set

Capacity: 2 Ton

Power: Lithium Battery powered

Table Size: 2500*1500*700mm

Lifting Height: 500mm

Guidance Method: Laser Guided

Product Brief

Customer pain points:

In the manufacturing process, the smoothness of the production rhythm determines the overall production efficiency of a factory. A temporary pause in any process will affect the progress of the next process; in severe cases, it may even lead to failure to deliver on time.

transfer cart manufacturer,electric trackless transfer trolley,automatic guided vehicle

Solution Introduction:

Our customer, a Shanghai-based rebar processing workshop, plans to build a new intelligent industrial handling production workshop. To meet the on-site requirements, they adopted the 2MT AGV (Automated Guided Vehicle). The laser-guided type was chosen as it can perform operations such as horizontal and vertical movement, in-situ rotation, and lifting as required.

transfer cart manufacturer,electric trackless transfer trolley,automatic guided vehicle

Product Structure:

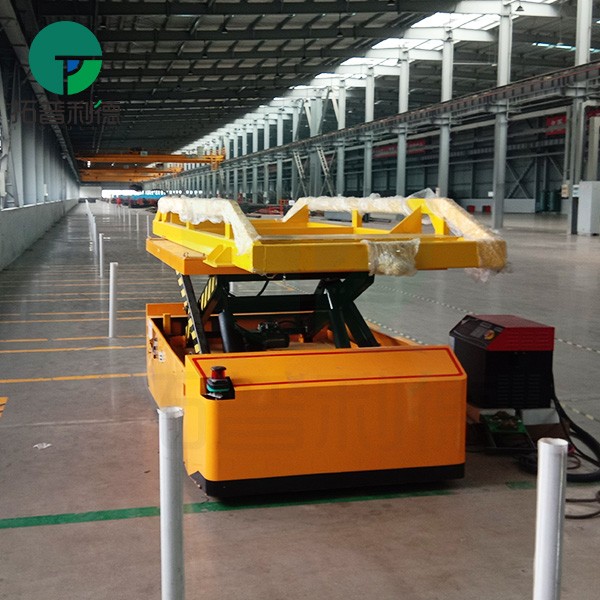

This automatic guided vehicle is equipped with mecanum wheels, a scissor lifting device, and an automatic charging system. Its structure consists of a spliced steel frame and a flat table.

Mecanum wheels enable 360-degree rotation, allowing the AGV to move both vertically and horizontally.

transfer cart manufacturer,electric trackless transfer trolley,automatic guided vehicle

The scissor lifting device, with a lifting height of approximately 0.8 meters, can adjust the working height and enhance loading and unloading efficiency.
The automatic charging system is installed on one side of the AGV, and there is a power display screen on the electrical box, enabling operators to monitor the power in real-time.

transfer cart manufacturer,electric trackless transfer trolley,automatic guided vehicle

As one of the latest material handling equipment, AGV features high-temperature resistance, flexibility, long-distance transportation capability, and automatic control. It has thus become a valuable assistant in various industries.

transfer cart manufacturer,electric trackless transfer trolley,automatic guided vehicle

Product Information:

Model: AGV

QTY: 1 set

Capacity: 2 Ton

Power: Lithium Battery powered

Guidance Method: Laser Guided

Table Size: 2500*1500*700mm

Lifting Height: 500mm

Running Speed: 0-50m/min

Wheel Type: Motor driven steering wheels
