Accurate Docking Mobile Cable Drive Rail Guided Vehicle

Product Brief

Overview: This Accurate Docking Mobile Cable Drive Rail Guided Vehicle adopts a box-girder type frame with an overall concave shape. It is equipped with a roller table surface, which can achieve precise docking of molds by connecting with each production line. The transfer vehicle is operated by a wired control panel, enabling fixed-point parking and precise docking to avoid debugging difficulties, thus committing to improving production efficiency.

Advantages:

• Applicability: The rail transfer vehicle is customized according to the actual needs of customers. The overall size and roller dimensions are matched with the entire production line, enabling the production process to operate in a streamlined manner.
• High Temperature Resistance: The box-girder frame of the transfer vehicle is made of cast steel as the basic material, which has high temperature resistance. In addition, it can be given explosion-proof characteristics by installing an explosion-proof shell, making it widely applicable to various harsh environments.
• Low Cost: The vehicle uses a mobile cable for power supply, which improves docking accuracy compared to trackless carts. Compared with battery powered transfer carts, it has a simpler overall structure, a relatively lower overall cart height, a wide range of applications, and stronger practicality.

Practical Applications:

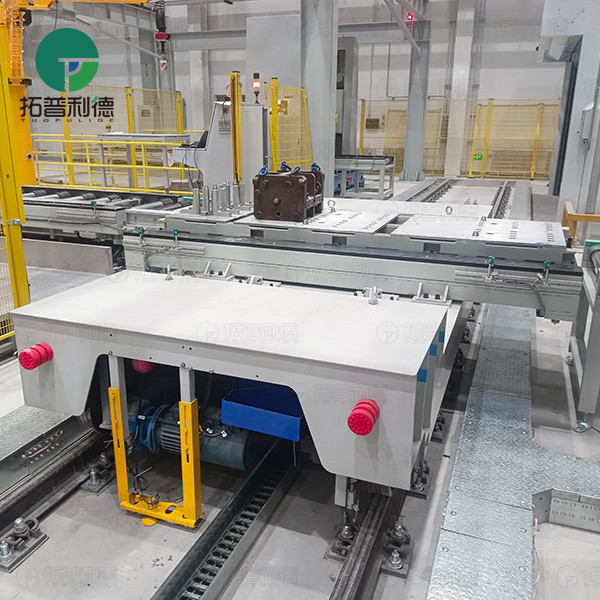

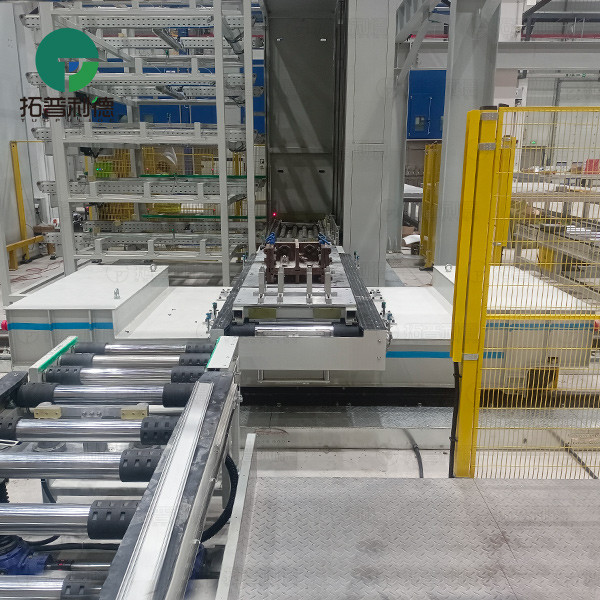

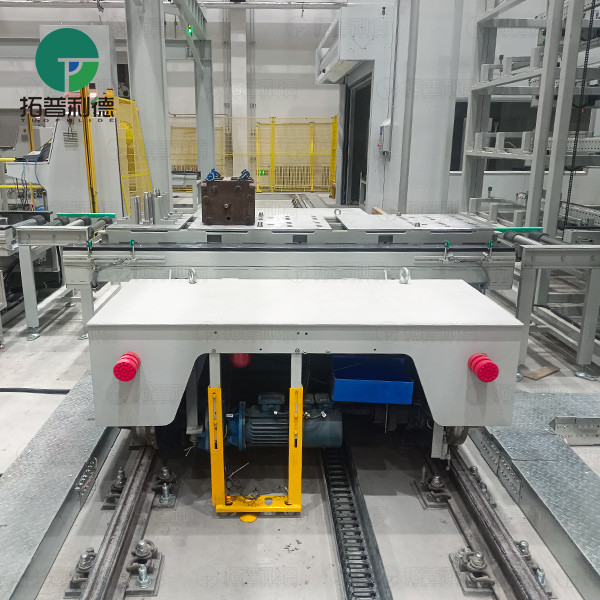

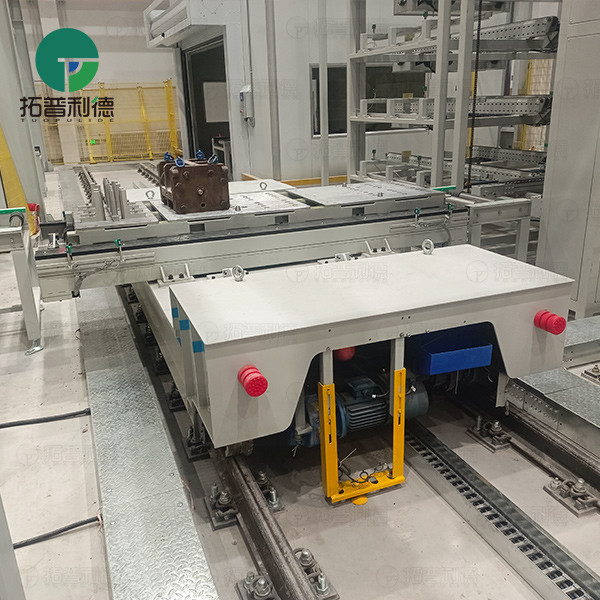

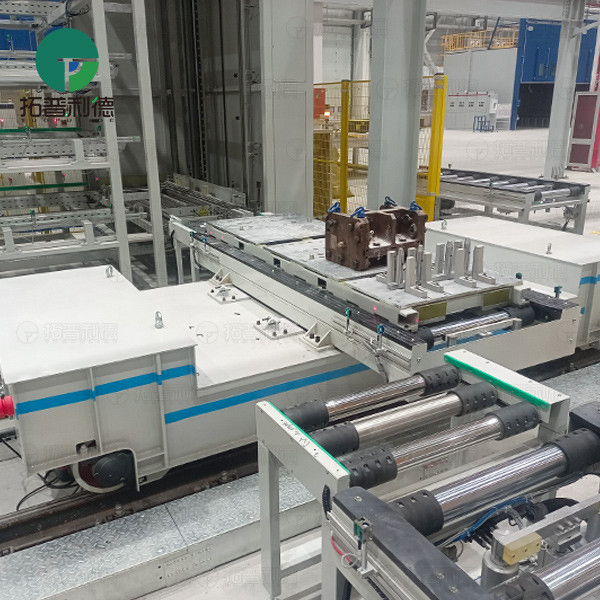

The Accurate Docking Rail Guided Vehicle is applied in production workshops, mainly responsible for mold handling.

01 The mold is transported from point A to the transfer vehicle. The vehicle moves longitudinally to reach the next fixed point, and completes the transportation with the help of precise docking and roller self-drive functions.
02 The transfer vehicle realizes instructions such as forward and backward movement through the control panel. Meanwhile, to ensure the safety of the workplace and operators, the cart is equipped with shock absorption buffers and warning lights to reduce losses caused by collisions, etc.

Services and Support:
1.The company promises that the Impact load resistance of the transfer vehicle is not less than 150%；
2.According to specific demands, we will design auxiliary devices and basic drawings for users free of charge, and provide technical services and drawing materials.；
3.Free installation and debugging until the user is satisfied；
4.Provide users with free technical consultation, technical training, and answer product-related questions；
5.Within 12 months after qualified commissioning and delivery, when the product is damaged or does not work properly due to quality problems, the user will be repaired or replaced with accessories free of charge.

Product Information:

Model: RGV-5T
Load: 5 Tons
Size: 4000*1500*600mm
Power Supply: Mobile Cable Power
Running Speed: 0-20m/min
