Heavy Load 360 Degree Rotation Electric Rail Locomotive Turntable
Product Information:
Model: BZT-200T
Load: 200 tons
Size: 25000*5200*1500mm
Power Supply: Cable Power
Running Speed: 0-20m/min (about 3 minutes a turn)
Product Brief
To address the issue of locomotive steering in the field of railway transportation and maintenance, we have introduced this locomotive turntable with a load capacity of 200 tons. It can shoulder the mission of efficient handling in railway transportation.
| Structural Components | Description |
| Loading Platform | Made of high-strength steel, with a 25000×5200mm flat surface and standard tracks laid |
| Central Pivot | Made of special alloy, with high-precision processing, supporting and ensuring smooth rotation |
| Drive System | Powered by an electric motor, the power is transmitted to the edge gear through a reduction gear and a transmission chain to drive rotation |
| Rail Connection System | Adjustable device to ensure accurate docking with external rails |
Working Principle:

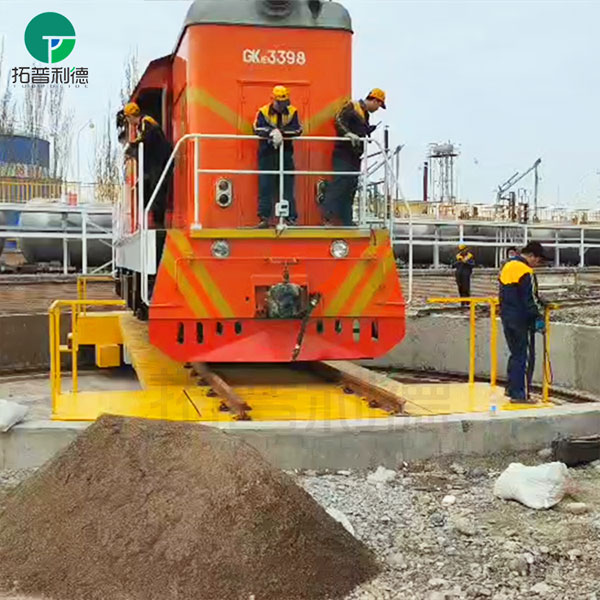

01 When a locomotive needs to be steered, the locomotive driver slowly drives the locomotive onto the bearing platform of the turntable, and tries to align the center of gravity of the locomotive with the center of the turntable as closely as possible to ensure the smoothness of the steering process.
02 At this time, the operator starts the driving system through the control system in the control room. The motor is powered on and starts to run. The output power is decelerated and the torque is increased by the speed reducer, and then transmitted to the driving gear at the edge of the turntable through the transmission chain.
03 The driving gear drives the turntable platform to rotate around the central pivot, and the locomotive rotates together with the turntable.
04 The operator precisely controls the rotation speed and stop position of the turntable according to the angle by which the locomotive needs to be steered. When the turntable rotates to the predetermined angle and the steering of the locomotive is completed, the operator stops the driving system, and the locomotive driver can then drive the locomotive off the turntable and head to the designated location for subsequent maintenance and other operations.
Working Scenarios:

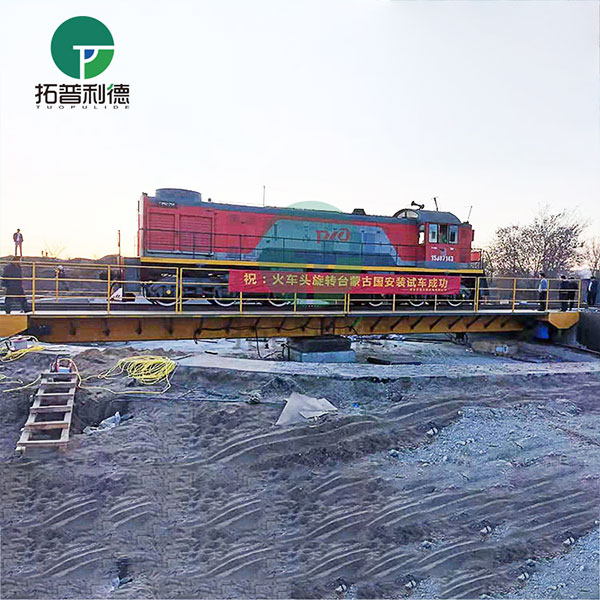

Our 200-ton locomotive turntable is mainly applied in the scenarios of locomotive maintenance, and is commonly found in railway locomotive depots.
After a long period of operation, the locomotive needs to enter the maintenance workshop regularly for a comprehensive inspection, repair, etc.
Since the locomotive is huge in size and its running direction is fixed, it is not easy to change its driving direction when entering the maintenance workshop. To solve this problem, the locomotive turntable has become a key tool in the maintenance process.
It can turn the locomotive around so that it can enter various maintenance stations in the maintenance depot, which can greatly improve the efficiency and convenience of the maintenance work.
Product Information:
Model: BZT-200T
Load: 200 tons
Size: 25000*5200*1500mm
Power Supply: Cable Power
Running Speed: 0-20m/min (about 3 minutes a turn)
