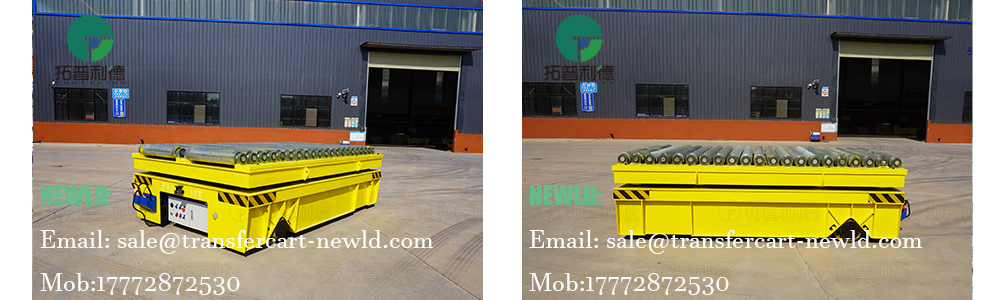

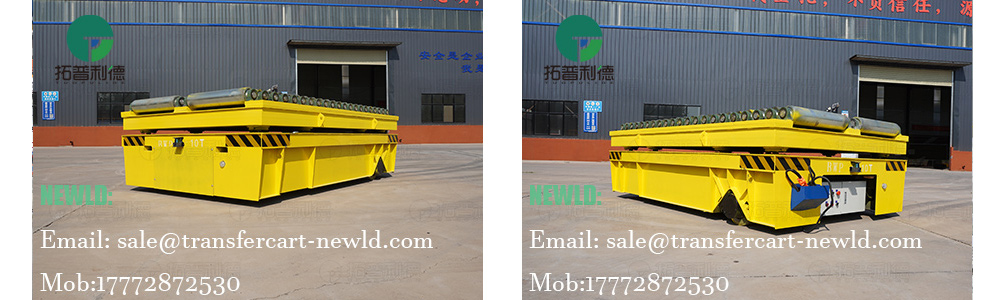

20 Tons Roller Mounted Trackless Transfer Cart Facilitates Material Transportation

Production Challenges
A large building materials manufacturing company faced pain points such as low material transfer efficiency on its production line, poor flexibility of fixed tracks, and difficulty in handling heavy building materials.

Solution
The 20 tons battery powered trackless transfer cart, with its superior performance and flexible configuration, has become the ideal choice for transferring building materials.

Advantages
Trackless and Flexible Operation: The cart uses high performance polyurethane wheels, allowing free turning on flat ground without the need for tracks. Its compact 2200*1200*600mm body adapts to narrow aisles. Through a dual control mode of "wired handle + wireless remote control," the operator can remotely command or operate the cart on-site.

Heavy Duty Lifting Integration: The cast steel frame and roller platform ensure 20 tons load-bearing stability. Combined with the platform's screw-type lifting system (adjustable range ±200mm), it can quickly adapt to shelves and equipment of different heights. The laser guided dead man stop (safety collision avoidance sensor) and emergency stop button provide dual protection, stopping immediately upon obstacle detection and ensuring zero risk during heavy load operation.

Application
This trackless transfer cart is now in use for material handling on customer production lines, successfully used for cross-regional transfer of heavy objects such as precast concrete pillars and steel frames. The trackless design saves on track modification costs, and the heavy load lifting function directly replaces some crane operations, reducing overall maintenance costs by more than 40%.
