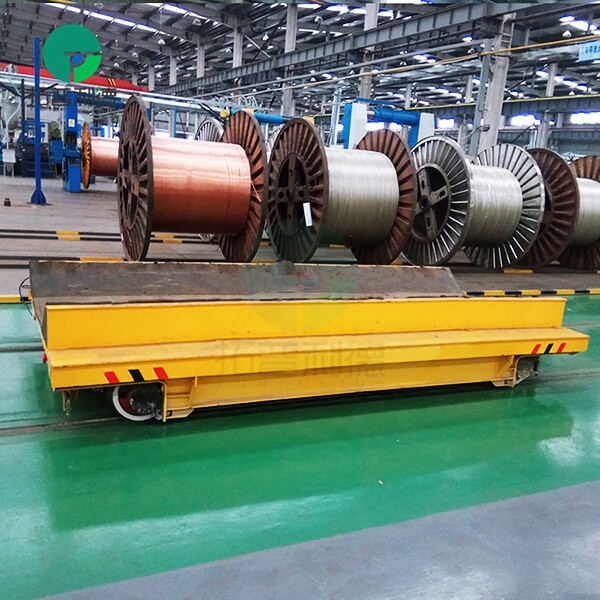

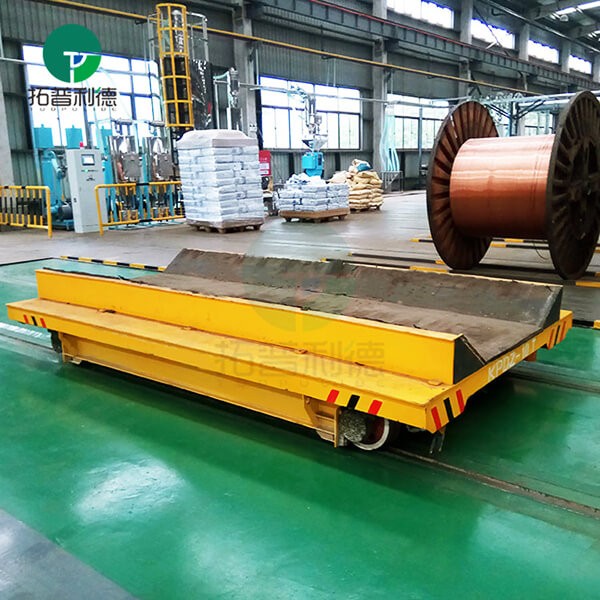

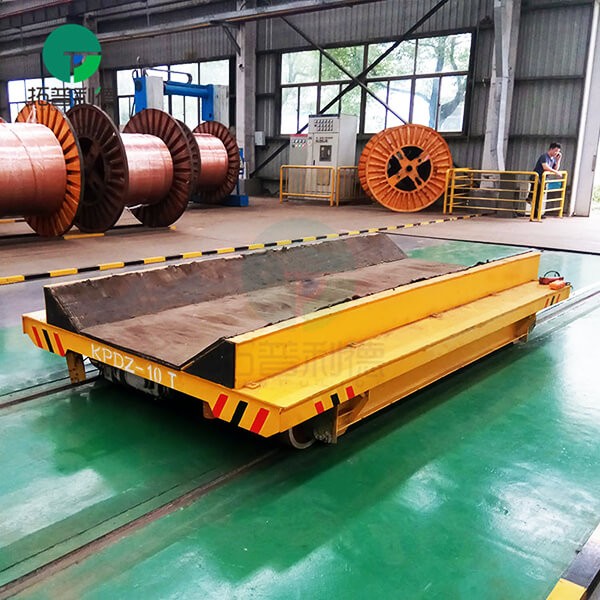

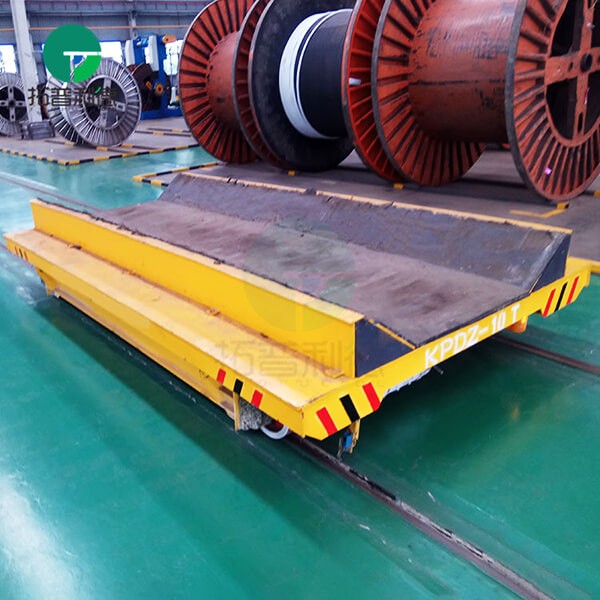

10T Capacity Coil Transfer Trolley

Product Brief

Component: The 10t capacity coil transfer trolley is an elelctric operated material handling trolley with U-shaped frame. This kind of electric power coils transfer trolley get electricity from the rails which is insulated, because it is added with insulated materials.

Working Principle: The power source AC 380V is transformed into AC 36V two-phase and are respectively connected to the two rails. Then the coil transport trolley's wheels conduct the AC 36V on rail into the electrical appliance box at the bottom of the coil rail transfer trolley. And then the AC 36V is transformed into DC 36V and then control the DC and adjust the speed and so on.

Application:

This rail coil transfer trolley can be customized as per demands, from size and capacity to power supply and so on. The rail coil transfer trolley with a U-shaped frame stabilizes the copper coil during transportation.

The transfer trolley is powered by a low-voltage rail, with insulated wheels and a carbon brush for current delivery. It is not limited in running time and distance, and can be widely used in different industries. It is controlled by a wireless remote, which increases the distance between the operator and the actual working environment.

Product Information:

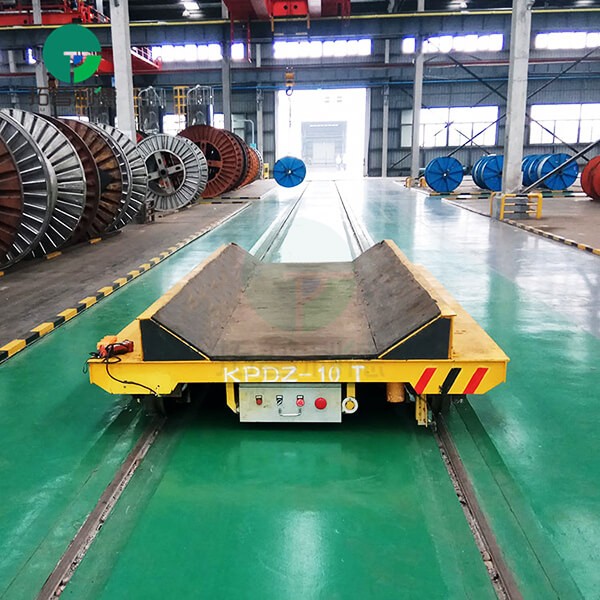

Model: KPDZ-10T

Load: 10 tons

Size: 2500*1500*400mm

Color: Yellow

Power supply: Conductor Rail

Wheel Diameter: 300mm

Features: U-Shaped Frame

Application: Steel Wire Coil Transport
