15 Tons Rail Guided Vehicle with Hydraulic Lifting Device for Container Handling

Product Brief

The rail guided vehicle features a high-strength steel structure body. The standard configuration includes a flat platform, and it innovatively integrates a hydraulic lifting platform to meet container transfer requirements
Size and Load Capacity: 100% customizable, the vehicle body can be adjusted according to the factory workshop aisles and container dimensions, with a rated load capacity of 15 tons.
Core Configuration: The walking system uses wear resistant cast steel wheels and a shock-absorbing design to ensure smooth operation on the rails; equipped with a high-capacity battery and portable charger, it achieves long-term operation without distance limitations.
Intelligent Interaction: The rail guided vehicle body integrates an LED display screen and a power display screen, providing a clear overview of the equipment status.

Advantages

• Green and Environmentally Friendly with Unlimited Range: Powered by high-performance batteries, achieving zero emissions and low noise. No external cables restrict operating distance, perfectly adapting to long-distance, multi-track workshop layouts.
• Intelligent Safety and Convenient Operation: Equipped with a wireless remote control system, laser collision avoidance sensors, and audible and visual warning lights, it automatically detects obstacles and brakes in emergencies, simplifying operation and significantly improving safety in complex workshop environments.
• Flexible Customization and Multifunctional Integration: From platform size and travel speed to specialized hydraulic lifting structures, everything can be customized to perfectly integrate with automated production lines of varying heights, making the equipment highly adaptable.

Applications

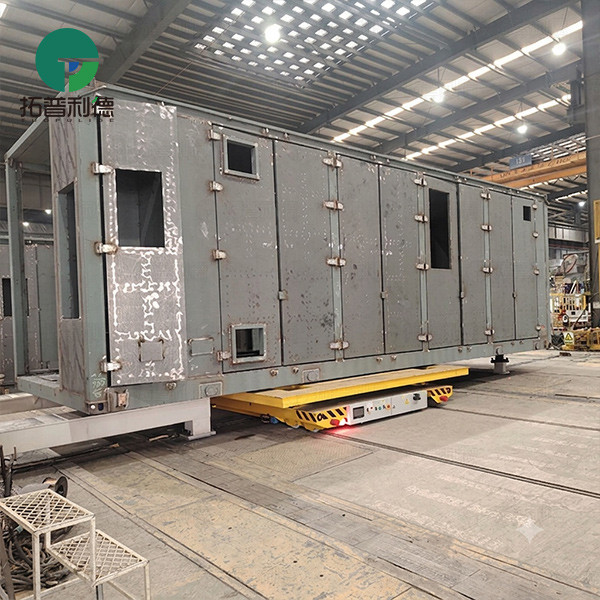

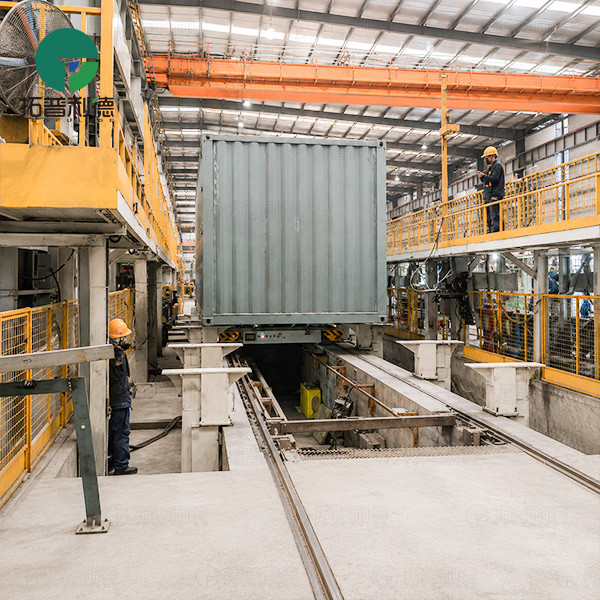

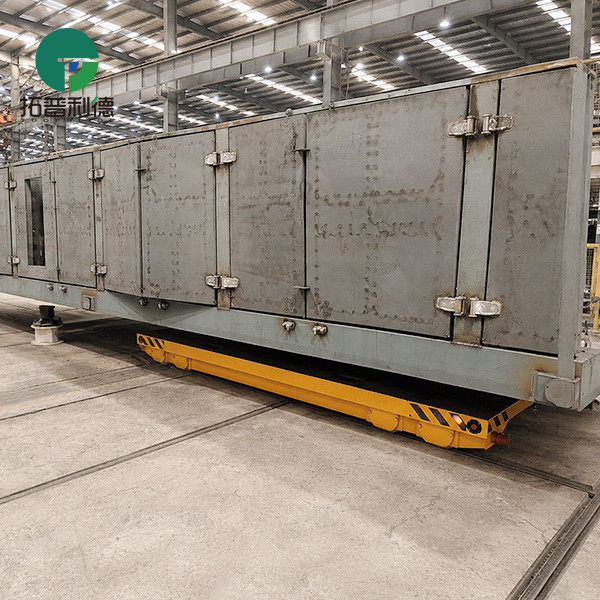

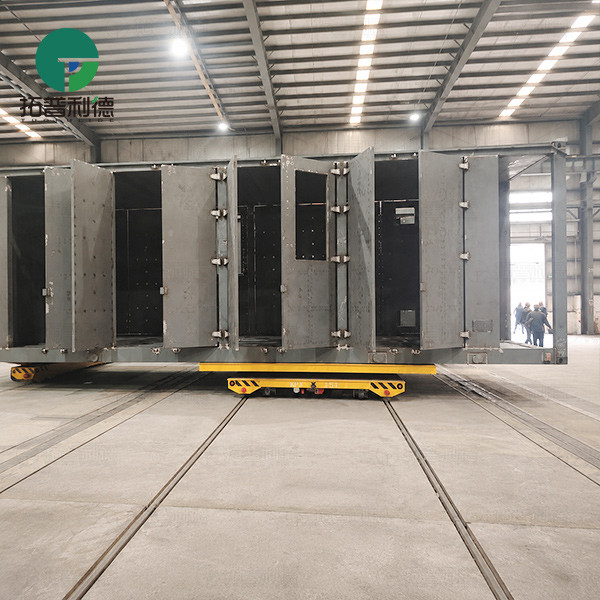

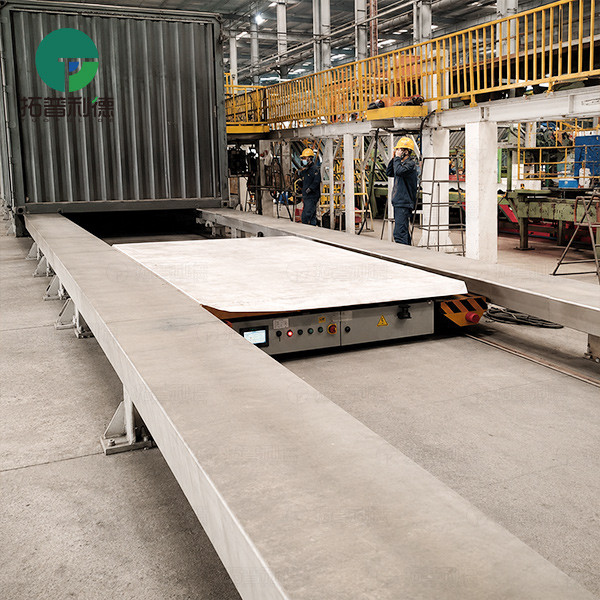

In container handling scenarios in production workshops, the equipment quickly connects to trucks or production lines via a hydraulic lifting platform. Operators can complete the entire loading, transfer, and unloading process wirelessly.
Operators simply issue commands via remote control, and the rail guided vehicle moves automatically to the loading station. With the hydraulic lifting platform, the platform can be precisely raised or lowered to the loading and unloading height, allowing for the smoothest possible container transfer. The entire transfer process requires no lifting equipment or extensive manual intervention, significantly reducing the risk of collisions and achieving efficient, safe, and automated container transfer.

Product Information:

• Model: RGV
• QTY: 1 set
• Capacity: 15 Ton
• Power: Battery powered
• Table Size: 2100x1900x450mm
• Lifting Height: 200mm
• Running Speed: 0-20m/min
