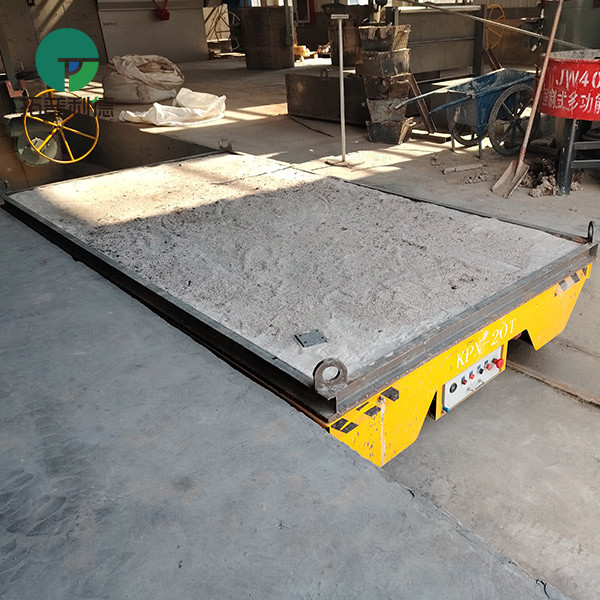

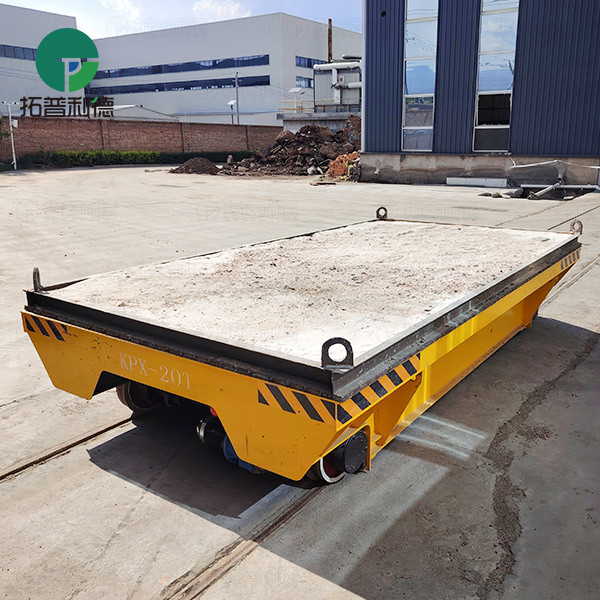

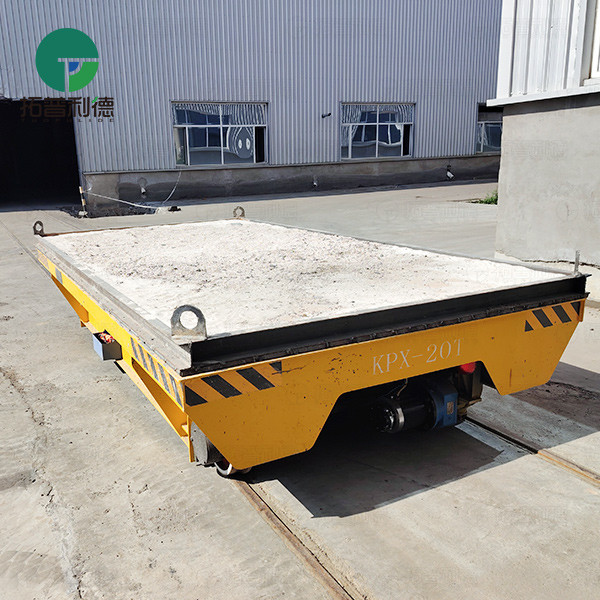

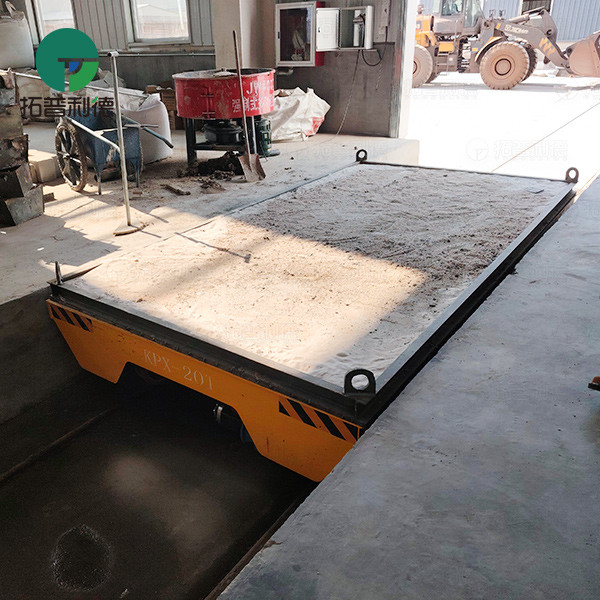

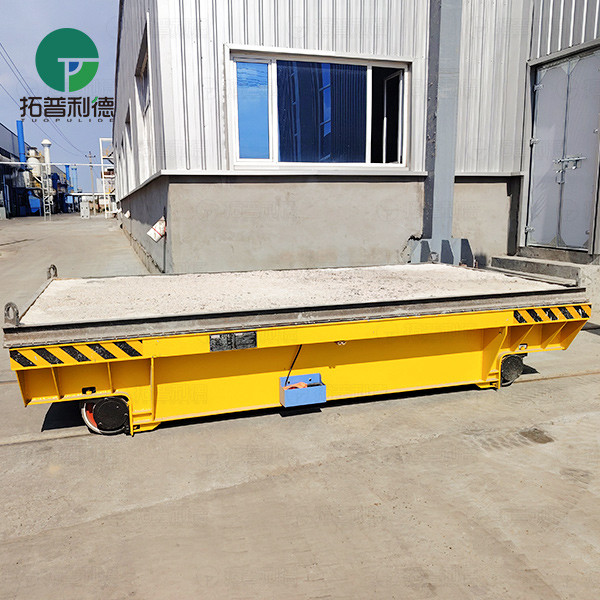

20 Tons Battery Rail Transfer Cart for Industrial Handling

Product Brief

This 20 tons battery powered rail transfer cart, specifically designed for heavy duty material handling across manufacturing workshops. Its height is flush with the workshop floor, eliminating distance limitations and solving the problem of transporting large materials across areas.

This 20 tons battery powered rail transfer cart has dimensions of 4000×2200×700mm and a width of 2.2 meters, allowing for easy passage through most workshop aisles and connecting corridors. With a height of 700mm, it is essentially flush with the workshop floor.During loading and unloading, operators can use hydraulic pallet jacks or small forklifts to push workpieces horizontally onto the platform, eliminating the need for high lifting, saving effort and increasing safety. The box-girder frame provides strong bending and torsional resistance when bearing 20 tons, preventing deformation over long-term use and ensuring the platform remains level.

Advantages

• Environmentally Friendly: Battery power achieves zero emissions, meeting green production requirements in workshops. It has no distance limitations, enabling direct cross-workshop material transfer without intermediate relocation.
• Safe and Convenient: Dual operating modes adapt to complex workshop environments. Multiple safety protection designs reduce operational risks. Audible and visual warning lights provide real-time status updates, an emergency stop button ensures second-level response to emergencies, and an intuitive power display makes energy management clear at a glance. Multiple dimensions ensure the safety of personnel and production in the factory area.

We understand that every production line has unique operating conditions. From specific dimensions and operating speeds to non-standard auxiliary devices, we can tailor-make exclusive heavy load logistics solutions for you, helping your company achieve automated and highly efficient cross-workshop material flow.

Product Information:

• Model: KPX
• QTY: 1 set
• Capacity: 20 Ton
• Power: Battery powered
• Table Size: 4000x2200x700mm
• Running Speed: 0-30m/min
