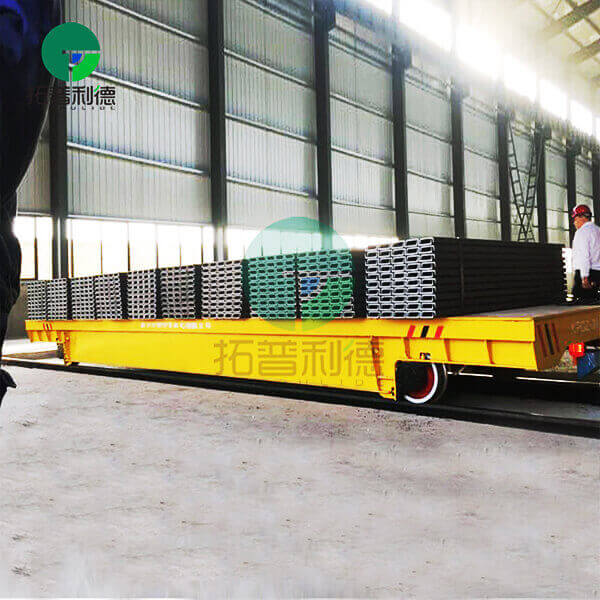

30 Ton Rail Powered U-Steel Transfer Carts For Metal Factory

Product Brief

Application: The 30 ton rail powered u-steel transfer carts are designed for material handling applied in metal factory. This kinds transfer carts also can be used for mold, pallet, finished product, machine parts, container and other material transport.

Working Principle: The transfer cart is powered by a low voltage rail ,when the operator turns on the wireless remote control and the transfer cart switch and power supply, the current is stepped down from 220V to 34V via the ground control cabinet. This current is then transmitted to the rail via underground wires. The current then reaches the electrical box via carbon brushes and conductive posts, and then flows through the rectifier module to achieve a 48V boost voltage. The control system implements commands such as forward and backward movement.

Product Parameters:

This transfer cart is rectangular, measuring approximately 4000 x 2000 x 500 mm.
It features a box-beam frame and insulated wheels, making it durable and wear-resistant while preventing electrical leakage. Its high temperature resistance makes it suitable for a variety of harsh operating environments.
The cart has a maximum load capacity of 30 tons and features a flat surface, allowing it to transport materials of various materials and shapes.

Customization Services:

The company specializes in the production of material handling equipment, exporting its products to over 100 countries and regions, and possessing over 70 qualifications and certifications. With extensive experience in production and design, we offer customization options ranging from table size and tonnage to the cart's appearance, functionality, and power supply, striving to meet every customer's needs.

Product Information:

Model: KPDZ-30T

Size: 4500*2200*600mm

Load Capacity: 30 tons

Power Supply: Low Voltage Rails

Wheel Type: Cast Steel Rail Wheel

Wheel Diameter: 270mm

Usage: U-steel transport
