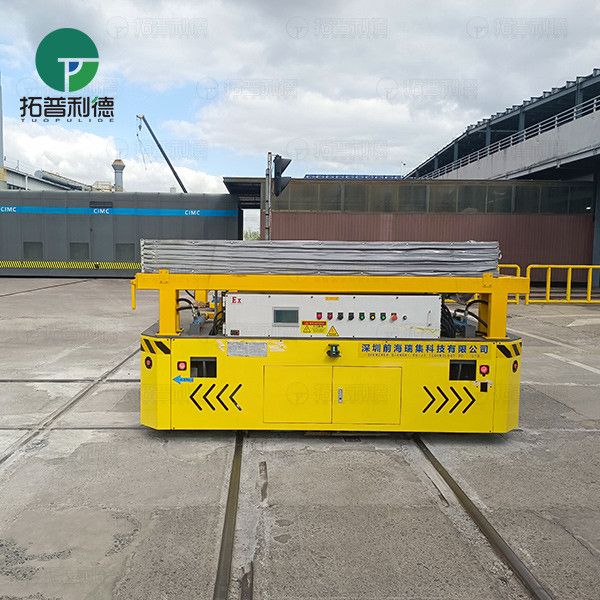

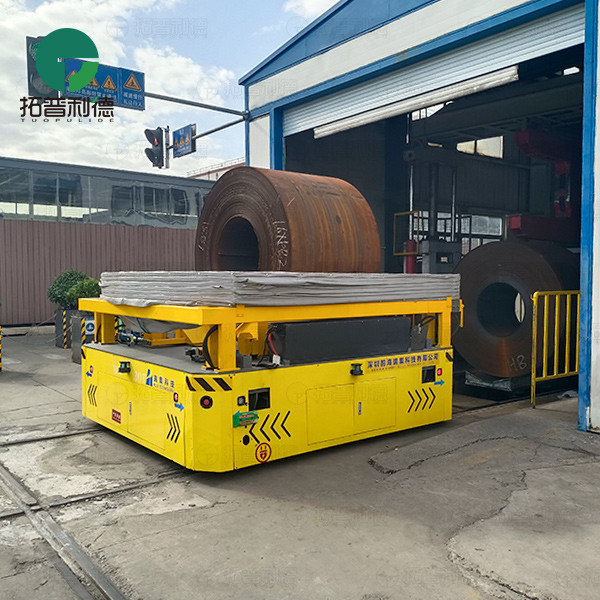

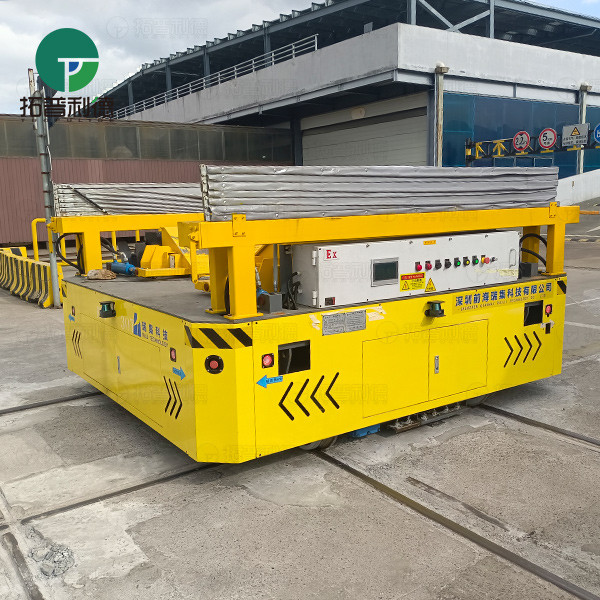

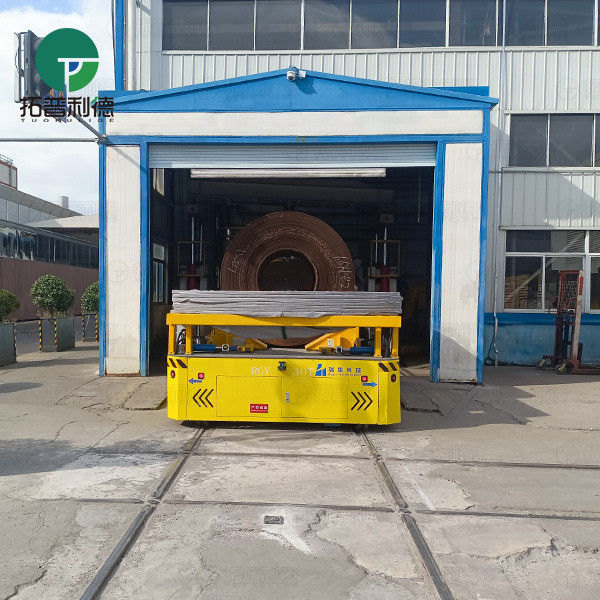

30 Tons Hydraulic Lifting V Block RGV for Mold Handling

Product Brief

The 30 tons lithium battery powered rail guided vehicle (RGV) is specifically designed for demanding working environments such as foundries and heavy manufacturing workshops. The vehicle features a box-beam frame structure, combined with cast steel wheels and a hydraulic lifting device, achieving a 30 tons heavy duty handling capacity within a compact size of 1800×1800×1200mm, offering both structural strength and spatial adaptability.

The lithium battery powered RGV completely eliminates the constraints of traditional cables, enabling continuous operation without distance limitations, making it particularly suitable for cross-regional and long distance material transfer.
Through the deep integration of wireless remote control and intelligent encoding control systems, coupled with an LED real-time display screen, operators can precisely control the equipment for both longitudinal and lateral movement, achieving millimeter-level docking accuracy.

The hydraulic lifting device, combined with a V-shaped frame design, significantly improves the stability of heavy load operation, maintaining stability even when handling irregularly shaped materials such as columnar iron blocks.
In terms of safety protection, the vehicle incorporates multiple safety features, a laser dead man stop sensor provides active personnel protection, while audible and visual warning lights and an emergency stop button form an emergency response mechanism, and an explosion proof casing fully protects the core electrical system. Vehicle is equipped with a platform canopy to ensure continuous and stable operation even in harsh weather conditions.

The RGV has been successfully applied in the production workshops of foundry enterprises, demonstrating excellent performance in iron block transfer, mold distribution, and finished product warehousing. Its intelligent control system supports path planning, significantly reducing labor costs and improving material flow efficiency by more than 40%, making it a reliable choice for safe, efficient, and intelligent handling in heavy load industrial scenarios.

Product Information:

• Model: RGV-30T
• Load: 30 tons
• Size: 1800*1800*500mm
• Power Mode: Battery
• Control: Remote Control
• Motor: DC Motor
• Running Speed:0-18m/min
