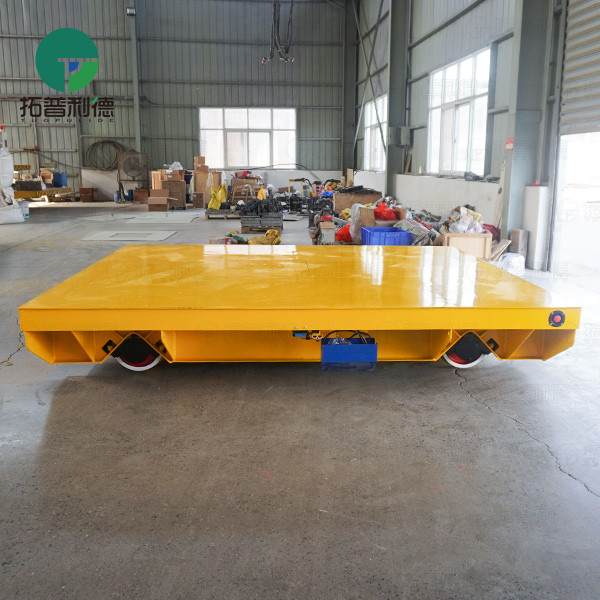

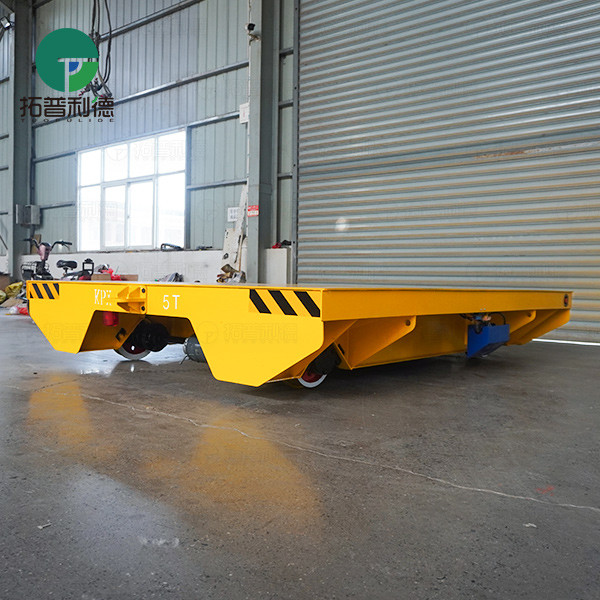

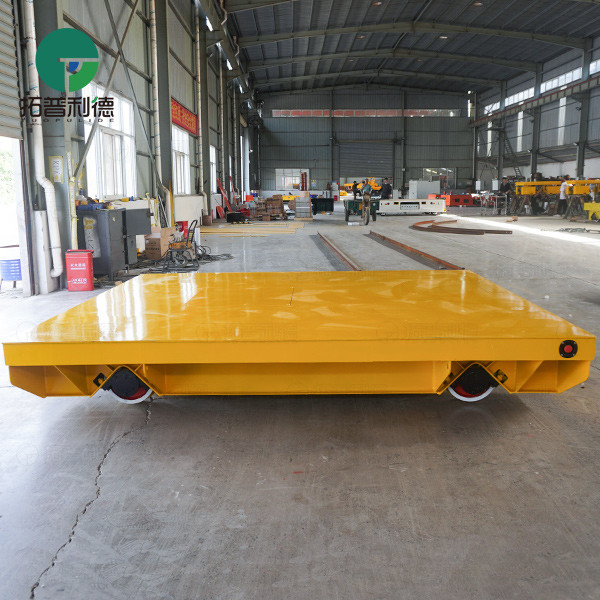

5 Tons Rail Transfer Trolley for Vehicle Jacking Machine Handling

Product Brief

This rail transfer trolley has a rated load capacity of 5 tons. The entire machine operates without the need for external power supply facilities such as sliding contact lines or cables. Its use is not limited by track length, and it can meet the entire process transport needs of vehicle jacks from spare parts warehouses to assembly and debugging stations.

The transfer trolley is controlled via both wireless remote control and wired handle, allowing operators to move with the vehicle or remotely command it, adapting to different work habits. A single charge meets the needs of multiple consecutive shifts of transport, completely eliminating the safety hazards and distance constraints associated with cable dragging.

Structure and Accessories

This pallet truck adopts a modular design. All core structures and accessories have undergone industrial-grade reliability verification. Each component has a clearly defined function and is easy to maintain:

• Main Structure:The frame uses a box-beam structure, providing good overall rigidity and load-bearing capacity, offering a stable structural foundation for 5-ton heavy load transport.

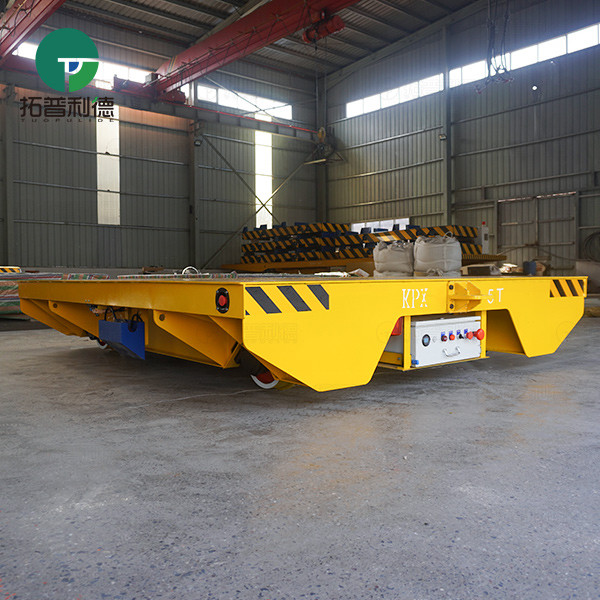

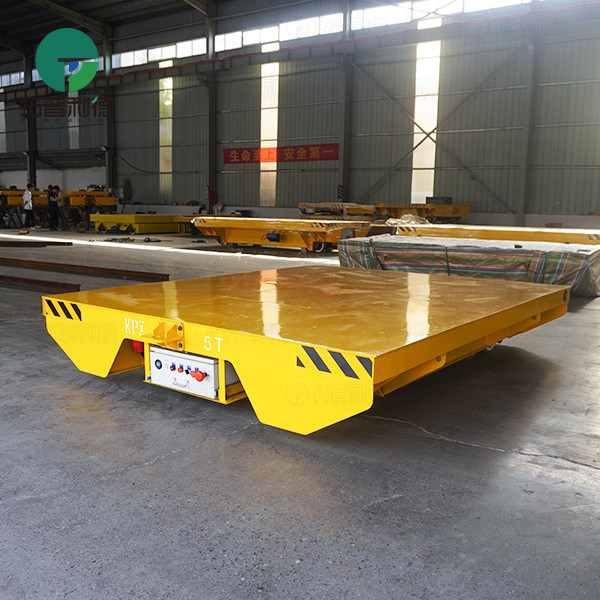

• Operation Control System:Rail transfer trolley equipped with both wireless remote control and wired handle, the wireless remote control has an effective range of up to 50 meters and supports full-function operations such as forward, reverse, speed adjustment, and emergency stop.Operators can move alongside the equipment and observe the surrounding environment along the transport path.The wired handle features an anti-pull spiral design and can serve as a backup operation in case of remote control mode failure. The two systems operate independently without interference, ensuring operational reliability.
• Extended Accessories:The front and rear of the cart are equipped with tow hooks as standard. This allows multiple pallet trucks to be transported in series to move longer workpieces, or the equipment can be moved to a maintenance area during power outages without the need for additional lifting equipment, significantly improving fault handling efficiency.

Application

Taking a vehicle lifting machine for a production workshop as an example:

1. Factory preparation and alignment: Check the power display to ensure sufficient power; turn on the power and use the wireless remote control to smoothly drive the rail transfer trolley to the predetermined transfer position on the vehicle lifting machine.
2. Loading and securing: Smoothly hoist the lifting machine or related heavy components onto the flat platform of the transfer trolley, ensuring the center of gravity is centered; if multiple vehicles need to be linked, a tow hook can be used for attachment.
3. Transfer process: Operators maintain a safe distance and press the forward/reverse buttons on the remote control. Audible and visual warning lights remain on during trolley operation to alert surrounding personnel.
4. Precise positioning and unloading: After the transfer trolley arrives at the target workstation, it can be finely positioned at close range using a wired handle. Unloading operations can then proceed after positioning is complete.
5. Routine maintenance and charging: After the work is completed, the portable charger can be used to replenish the power anytime and anywhere to ensure the next day's work.

Product Information:

• Model: KPX
• QTY: 1 set
• Capacity: 5 Ton
• Power: Battery powered
• Table Size: 3000X2500X500mm
• Running Speed: 0-20m/min
