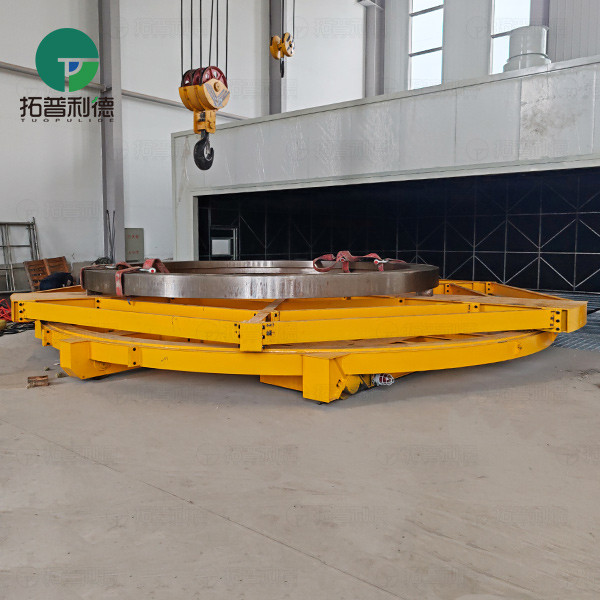

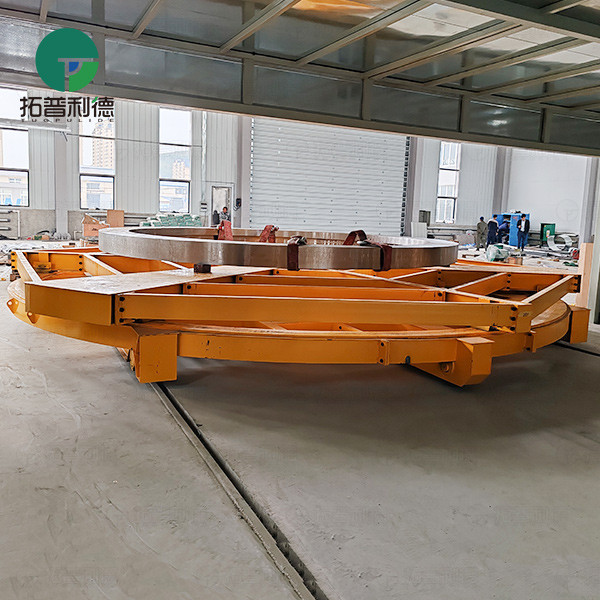

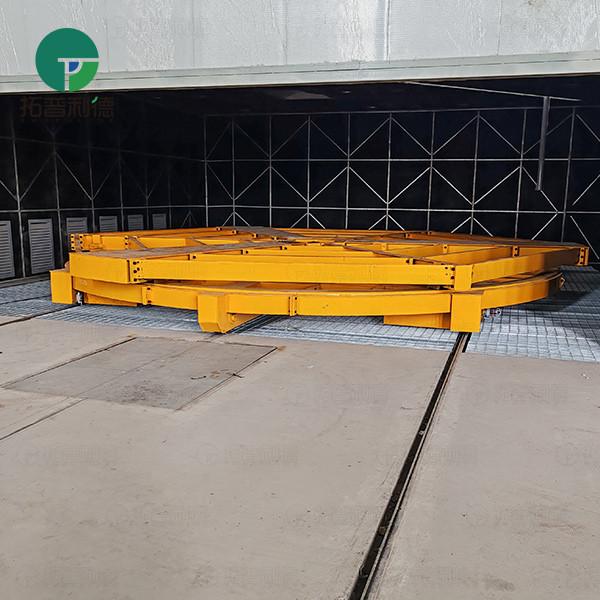

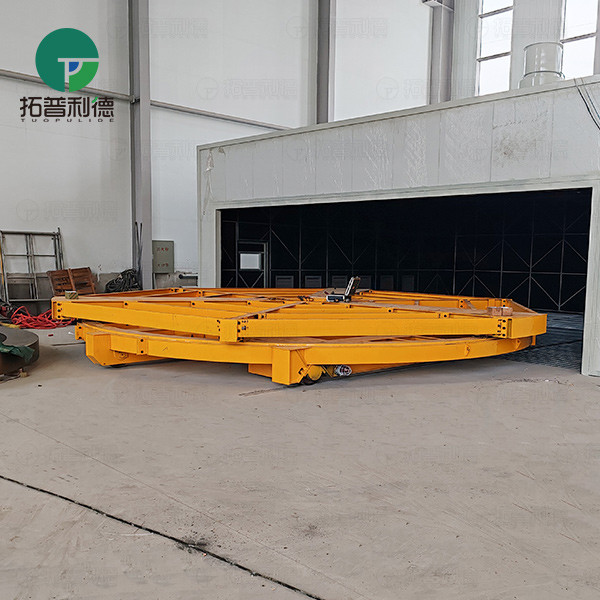

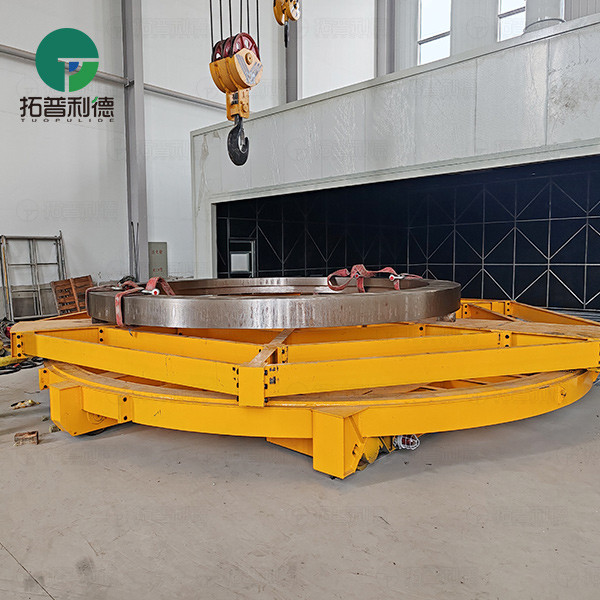

Large Capacity Turning Rail Transfer Cart for Blasting Room

Product Brief

In sandblasting environments, equipment must not only withstand sand and dust and heavy loads, but also operate uninterruptedly and without limitations. Our cable reel powered customized rail transfer cart is designed specifically for the high-frequency transfer and uniform sandblasting of large workpieces within a sandblasting booth.

Core Structure: Tailor-made for Sandblasting Scenarios

The rail transfer cart features an integrated design of a customized tabletop and a perforated frame.

Cast Steel Wheels: Wear resistant and impact-resistant, adaptable to uneven tracks and sand residue environments.

Perforated Frame and Customized Tabletop: The perforated frame design allows sand to fall naturally, preventing accumulation and obstruction; the tabletop can be customized to fit the workpiece dimensions.

Self-Driven Rotating Platform: An electric rotating function is integrated above the flatbed cart, allowing the workpiece to rotate at a uniform speed during transport, achieving 360° uniform sandblasting in conjunction with the sandblasting station, eliminating the need for manual flipping.

Special Components: Dual Guarantee of Safety and Efficiency

The power system utilizes cable power supply, coupled with a cable reel, cable guide, and guide posts. A 50 meters wear resistant cable, combined with an automatic cable routing mechanism, ensures the tracked cart moves back and forth within the sandblasting chamber without tangling, allowing for unrestricted continuous operation.Explosion proof Housing and audible and visual alarm lights meets the explosion-proof requirements of the dusty environment of the sandblasting chamber, with audible and visual alerts for operation and start/stop.

Wired Handle Control: Stable and interference resistant, allowing operators to safely command remotely; remote control mode can also be added as needed.

Heavy Duty and High Efficiency: Load-bearing capacity is customized according to the workpiece weight, solving the pain points of large structural components being "too heavy to move and rotate unevenly."

Whether it's wind turbine towers, pressure vessels, or other large molds, the platform size, load-bearing capacity, and rotating platform load can be customized to meet the needs of different sandblasting scenarios. The rail transfer cart has already passed explosion-proof certification, providing a continuous power source for the intelligent upgrade of sandblasting chambers.

Product Information:

• Model: KPJ-5T
• Load: 5 tons
• Size: 4000*4000*850mm
• Power Mode: Cable Reel
• Control: Wire Hand Pendant
• Motor: AC Motor
• Running Speed:0-20m/min
