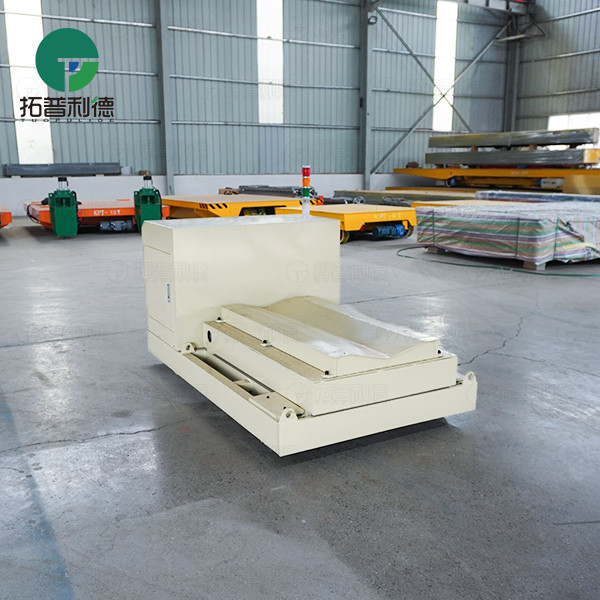

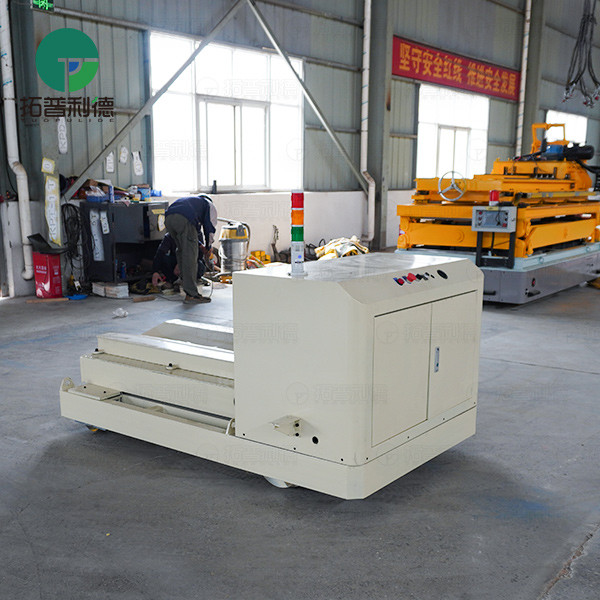

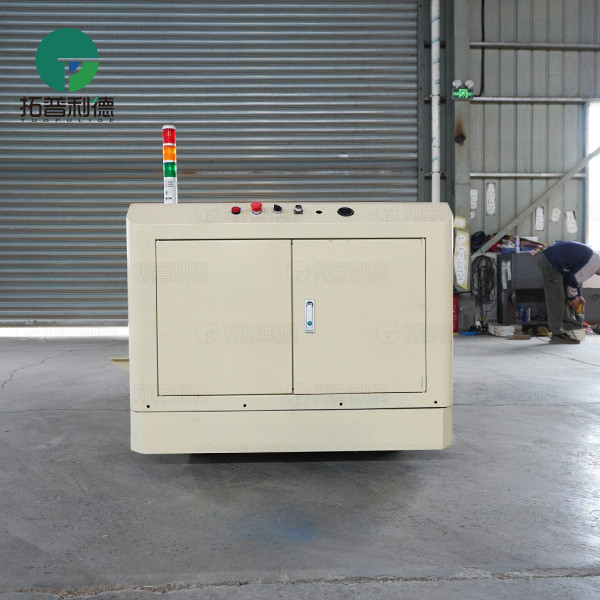

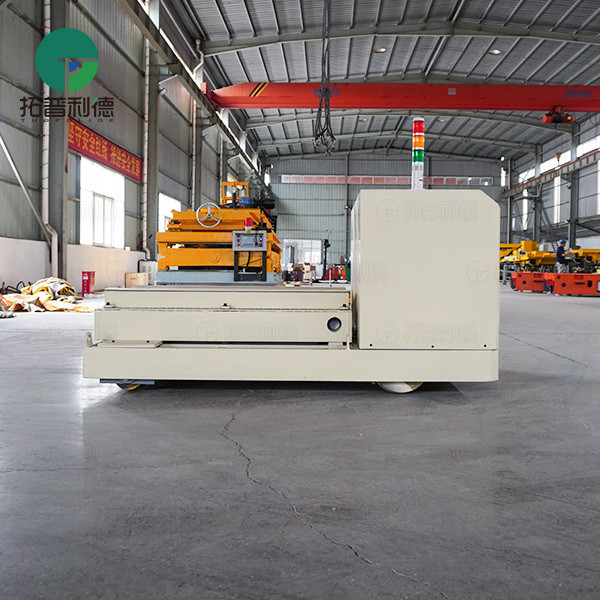

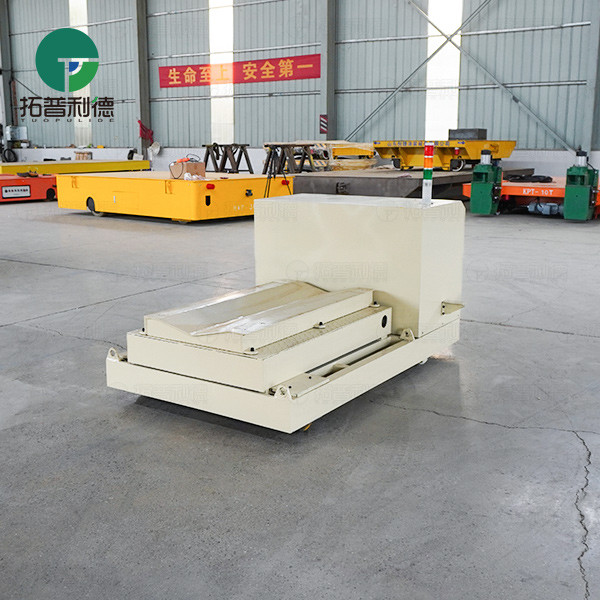

Lifting Rail Transfer Cart with V-block Frame for Coil

Product Brief

The 3 tons mobile cable powered lifting rail transfer cart is a high efficiency, environmentally friendly material handling equipment designed specifically for heavy-duty industrial material handling.The cart features a cast steel frame and a customized structural design, ensuring high safety while significantly improving factory material flow efficiency.

No Operating Time Restrictions: The lifting rail transfer cart uses a continuous and stable cable and drag chain power supply system, coupled with dedicated fixing slots, reducing the impact of cable scattering and dragging during operation. This allows for 24 hours continuous operation, suitable for production environments with continuous material handling needs.

Heavy Load Capacity and Safety Protection: Rail transfer cart equipped with high strength cast steel wheels and a three-color audible and visual warning light, the operating status is more intuitive, allowing on-site personnel to quickly identify the vehicle's working status. This ensures comprehensive safety at the work site while achieving high-tonnage heavy duty transport.

Customized Lifting V-Frame Platform: The platform is highly customized to meet specific transport needs, featuring a specially added hydraulic lifting V-frame for support and positioning during transport. The hydraulic lifting function is adjustable to accommodate loading and unloading and production line docking heights, facilitating easier steel coil transport, lifting, and docking.

The lifting rail transfer cart is electrically driven, achieving zero emissions and meeting green workshop requirements. No battery replacements or charging delays are needed, significantly improving operational efficiency. The customized platform and V-frame design can accommodate steel coils of various specifications.

This 3 tons lifting rail transfer cart is widely used in workshops of metal processing, papermaking, metallurgy, and heavy manufacturing companies, meeting the needs for transporting cylindrical heavy objects such as steel coils, aluminum coils, and pipes, as well as situations requiring platform lifting and docking.

Product Information:

• Model: KPT-3T
• Capacity: 3 Ton
• Power: Mobile Cable Powered
• Table Size: 1850x880x900mm
• Running Speed: 0-6m/min
