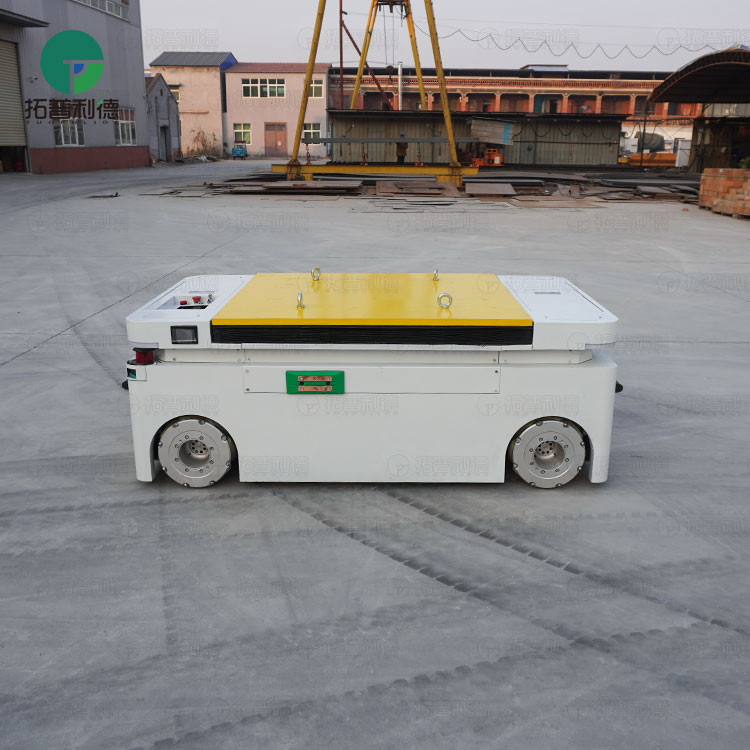

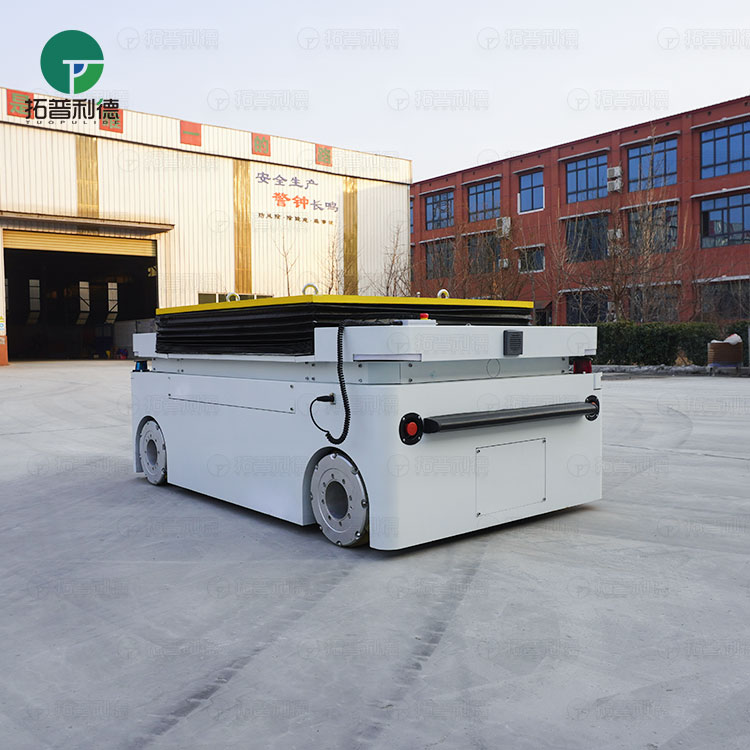

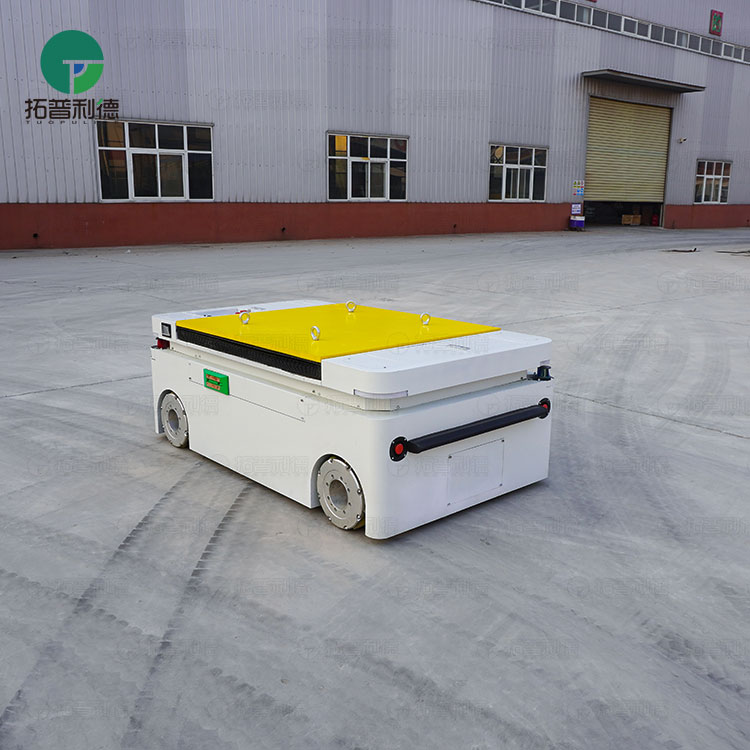

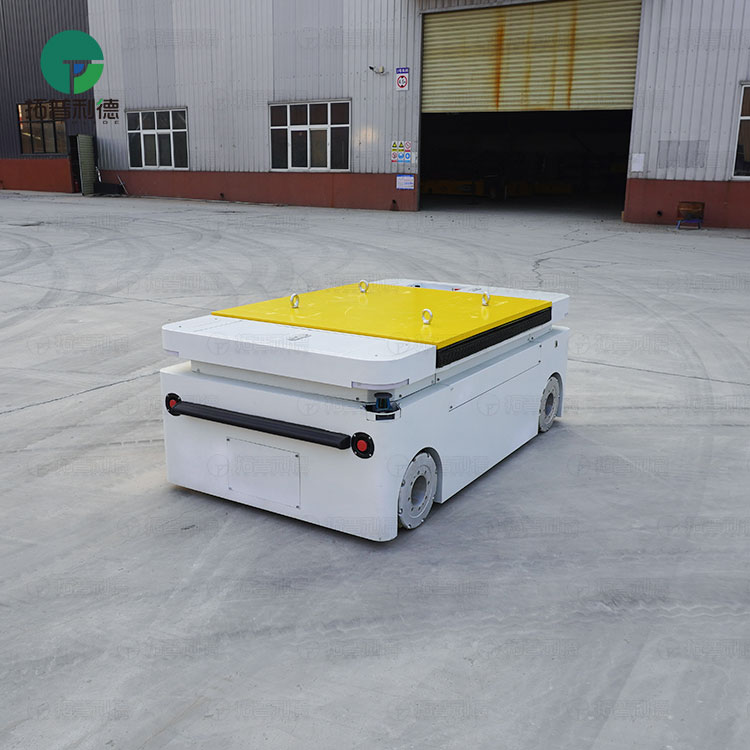

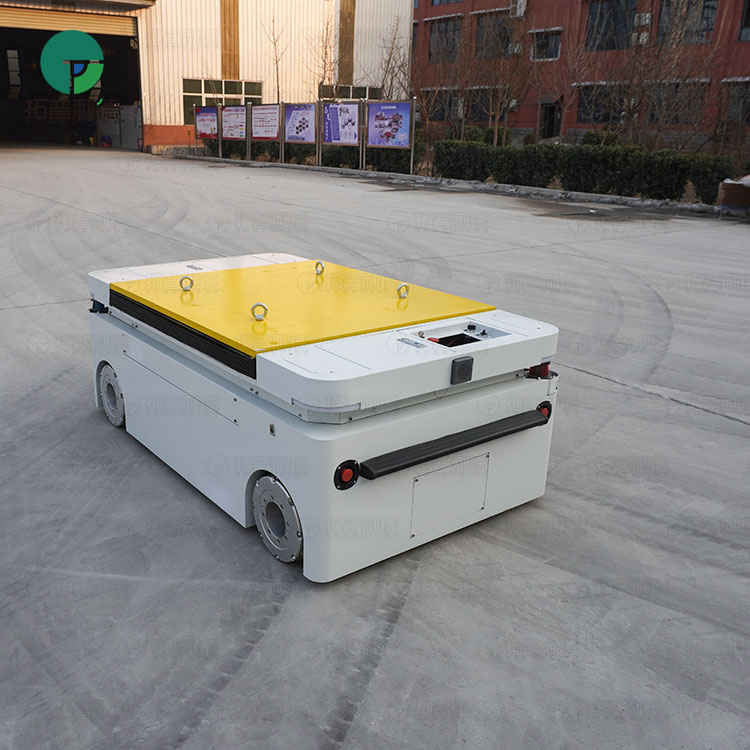

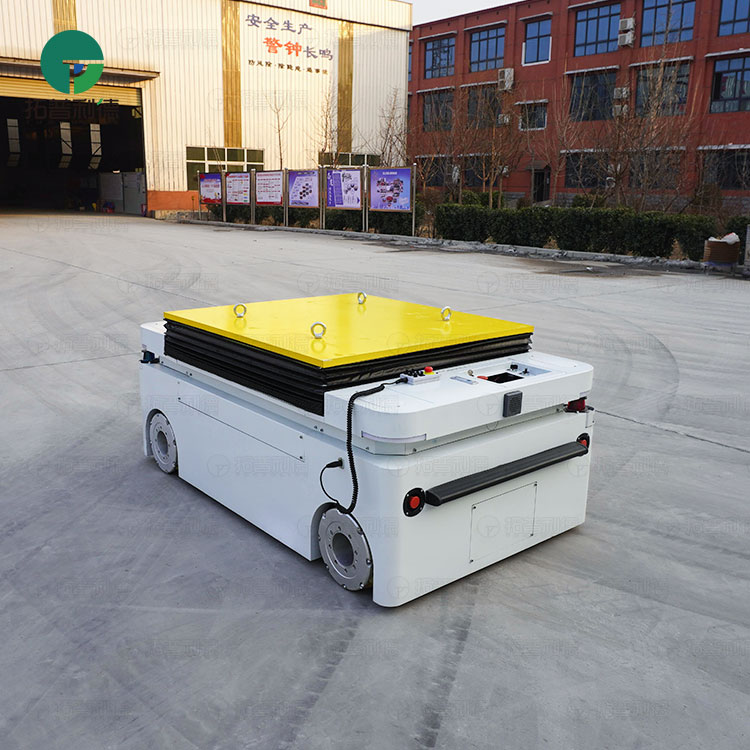

1.5 Tons Trackless AGV for Production Line Material Handling

Product Brief

Application: The 1.5 tons intelligent AGV is a flexible handling solution specifically engineered for transporting materials and molds between production lines within manufacturing workshops.

Product Parameters: Featuring a compact 1800×1000×800mm structure, it delivers a 1.5 tons load capacity while navigating freely between production zones without requiring track installation, thereby eliminating the spatial constraints typical of conventional handling equipment.

Functions:

AGV equipped with polyurethane swivel castors enabling 360 degrees rotation, coupled with an intelligent encoded control system for unrestricted movement trajectories.

The integrated hydraulic lifting mechanism (adjustable range 0-250mm) facilitates autonomous material loading/unloading with ±2mm docking precision.

Lithium battery power supports and automatic control system monitoring the power level all the time, complemented by dual-mode control via a detachable wired handle or wireless remote control for convenient, unlimited running distance operation.

Safety Design:

Triple protection comprises front/rear safety edges, emergency stop button, and laser dead man stop, ensuring safe human-machine collaboration. The fully welded steel chassis with wear resistant polyurethane wheels adapts to complex workshop floor conditions, delivering a service life exceeding 30,000 hours.

Widely deployed for material transfer on production lines in electronics, machinery, and related industries, a single unit replaces three manual workers, boosting transfer efficiency by over 50%. This facilitates intelligent workshop upgrades, cost reduction, and enhanced productivity for enterprises.

Product Information:

• Model: AGV
• QTY: 1 set
• Capacity: 1.5 Ton
• Power: Lithium Battery powered
• Table Size: 1800x1000x800mm
• Lifting Height: 250mm
• Running Speed: 0-40m/min
