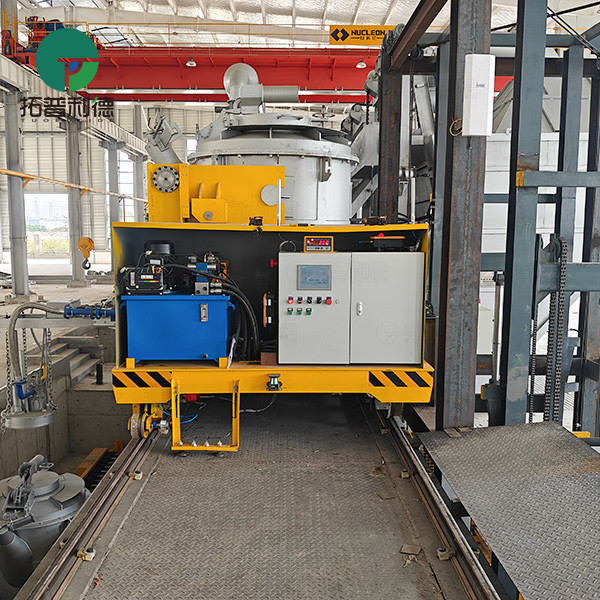

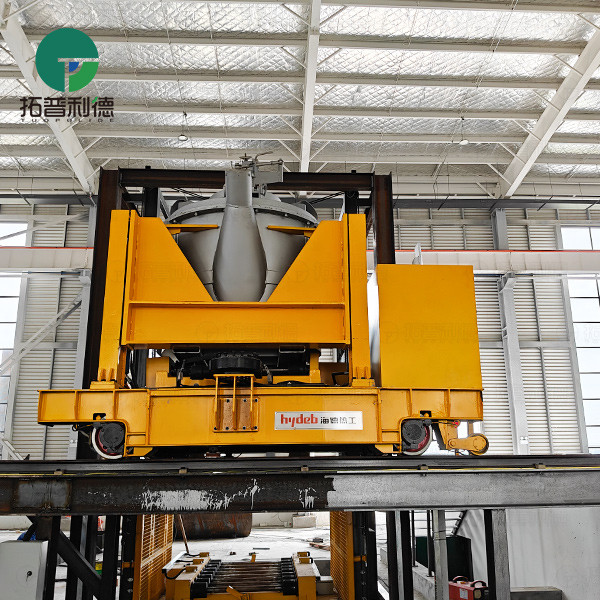

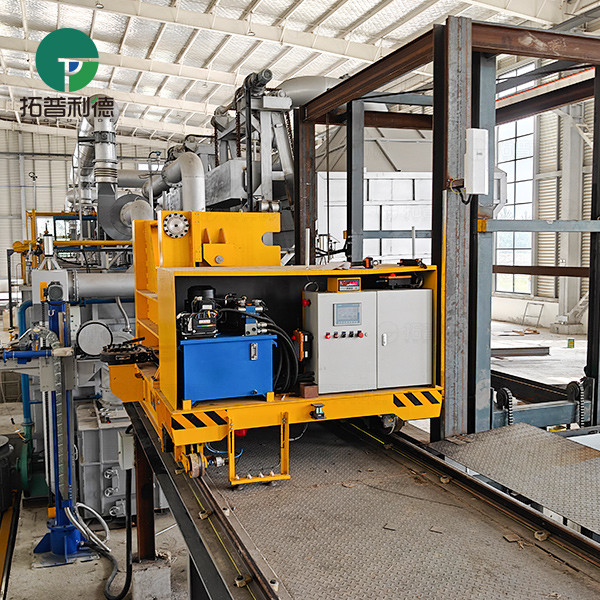

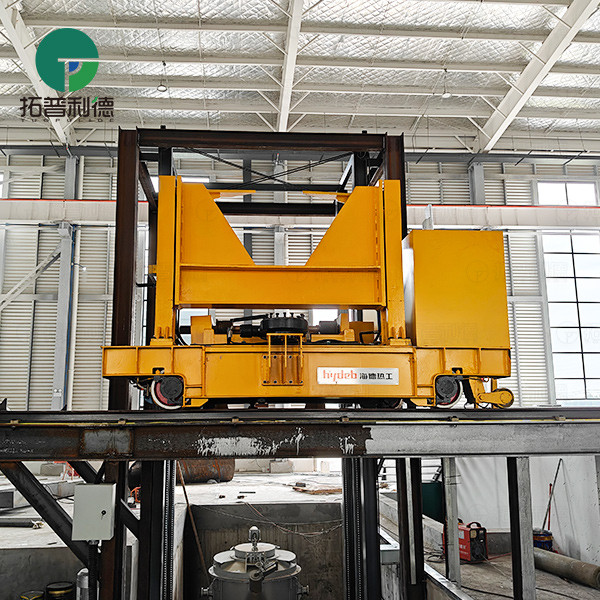

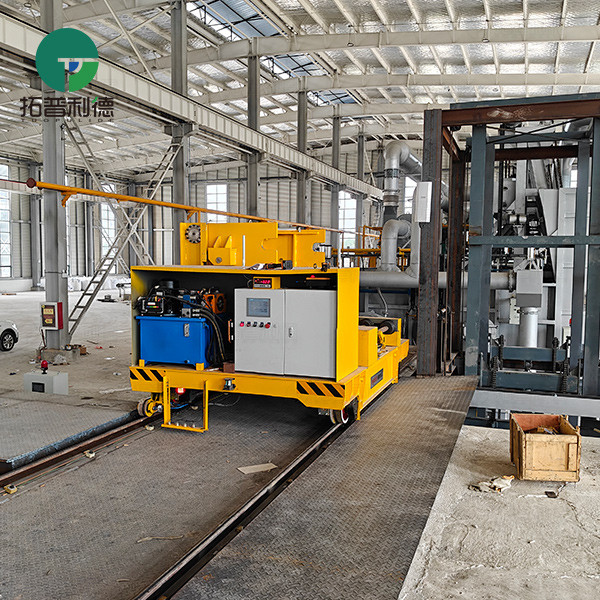

5 Tons Electric Railway Transfer Cart with Hydraulic Lifting Device

Product Brief

This electric railway transfer cart utilizes low voltage railway power, completely eliminating the limitations of traditional cables and batteries, enabling 24/7 high-frequency operation without distance or time restrictions.

This railway transfer cart is a deeply customized semi-automated system for the casting and smelting industry, integrating several core features:

• Multi-functional Transfer Platform: Utilizing a robust box-beam frame with a high-strength roller platform, it seamlessly integrates with existing roller production lines in the workshop, ensuring smooth ladle transfer.
• Hydraulic Lifting and 90° Tilting: Equipped with an industrial-grade hydraulic lifting device, the platform can be hydraulically tilted 90 degrees using hydraulic rods, precisely controlling the angle and flow rate of molten aluminum pouring.
• Dual Remote Semi-Automatic Control: Employing a dual wireless remote control system—one remote precisely controls the cart, while the other independently controls the molten aluminum pouring action, achieving human-machine separation and ensuring personnel safety.
• High Precision Sensors and Safety Protection: Featuring a laser sensor device for intelligent collision avoidance, along with audible and visual warning lights, a real-time weighing system, and an LED display screen, providing clear visibility of the operating status.

This 5 tons low voltage railway powered transfer cart is used in production lines of medium to large-sized foundries, steel smelters, and aluminum product processing enterprises. Through the cooperation of its roller platform and hydraulic tilting system, the cart can easily dock with automated roller lines, achieving semi-automatic and precise pouring of molten aluminum.

In aluminum processing and metal smelting workshops, this electric railway transfer cart is responsible for carrying ladles along tracks. Upon arrival at the designated workstation, it precisely docks with the production line via the roller platform, and the hydraulic tilting system smoothly pours the molten aluminum. The entire process reduces manual intervention, improving production continuity and on-site safety.

Product Information:

• Model: KPD
• QTY: 1 set
• Capacity: 5 Ton
• Power: Low Voltage Railway Powered
• Table Size: 3000x1500x700mm
• Running Speed: 0-20m/min
