Customized Rail Turntable Cart for Mold Delivery in High Temperature Workshop

The factory area requires frequent transportation of large molds and heavy components. The original equipment was restricted by cables and had difficulty in steering.

Solution:

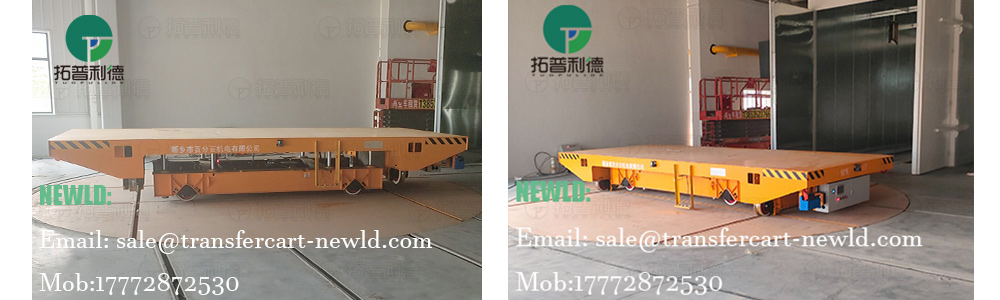

• The new rail turntable cart, with dimensions of 5000×1500×600mm, perfectly fits the workshop passages.
• Its cast steel spliced frame, combined with the tabletop expansion function, can easily carry workpieces of different specifications.

• The rail turntable cart can operate on dual tracks. The application of a hydraulic lifting device enables the cart to lift and lower on the longitudinal movement rails.
• Equipped with an in-ground 360 degrees rotating turntable, it can realize in-place direction change.

Safety System: The laser dead man stop function provides additional safety protection for operators, ensuring that the transfer cart can be stopped immediately in emergency situations.

Control System: The turntable cart is equipped with an LED display screen and a power display screen, which monitor the power and operating status in real-time, ensuring the continuity and reliability of the handling process.

Application:
In response to the high temperature environment in the workshop, the high temperature resistance of the equipment performs stably. The hydraulic lifting device, combined with the in-ground 360-degree rotating turntable, realizes seamless conversion between longitudinal rails and lateral workstations.

The in-place direction change function eliminates the need for the detour space required by traditional carts. The battery power supply with zero emissions throughout the process meets environmental protection requirements.
With a 6 tons heavy load capacity and efficient turnover efficiency, it has become the core equipment for material transfer between production lines and within the factory area, adapting to the diverse needs of heavy manufacturing scenarios.
