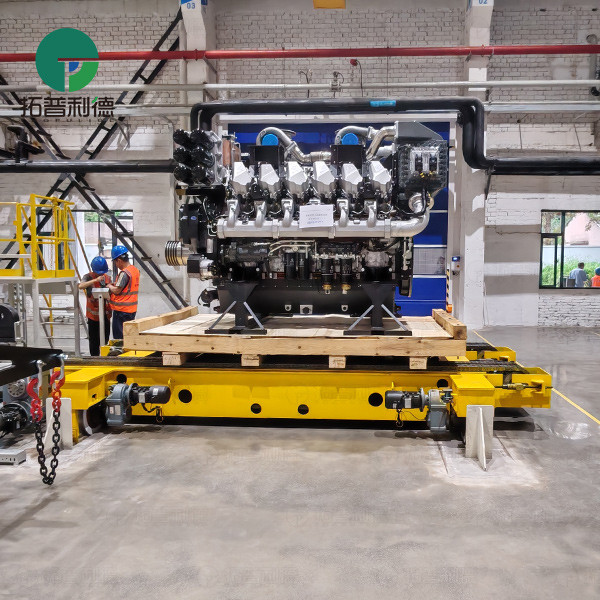

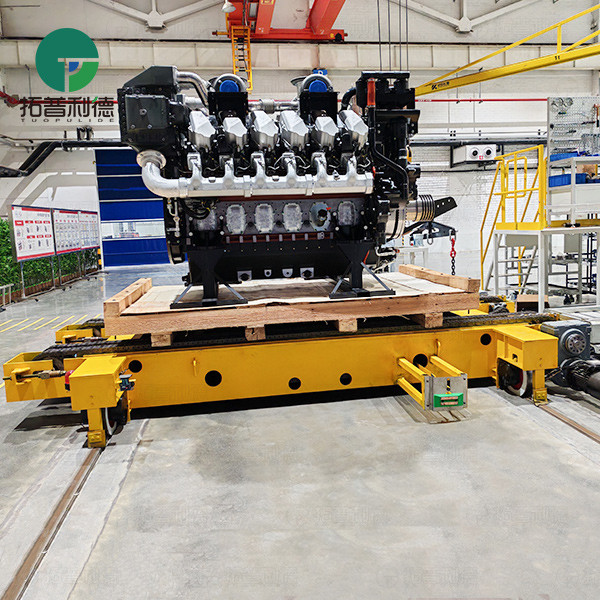

15 Tons Automatic Charging Rail Guided Vehicle for Large Workpieces
Product Information:
- Model: RGV-15T
- Load: 15 tons
- Size: 3500*4200*560mm
- Power Mode: Lithium Battery
- Control: Remote Control
- Running Speed:0-6m/min
Product Brief
In the machinery manufacturing industry, the cross-workshop transfer of heavy workpieces such as large truck components has long faced three major pain points: limited distance, difficult docking, and efficiency bottlenecks. This 15 tons Rail Guided Vehicle RGV, combined with a PLC control system and dual-motor drive technology, achieves truly unlimited distance, high precision, and high safety for heavy-duty handling.
Rugged Structure
The rail guided vehicle body adopts a grid-shaped reinforced frame, paired with a customized platform, which can be custom-designed according to the shape requirements of the truck frame, cab, chassis, and other components. Cast steel wheels and rails ensure long-term operation without deformation or deviation under a 15-ton rated load.

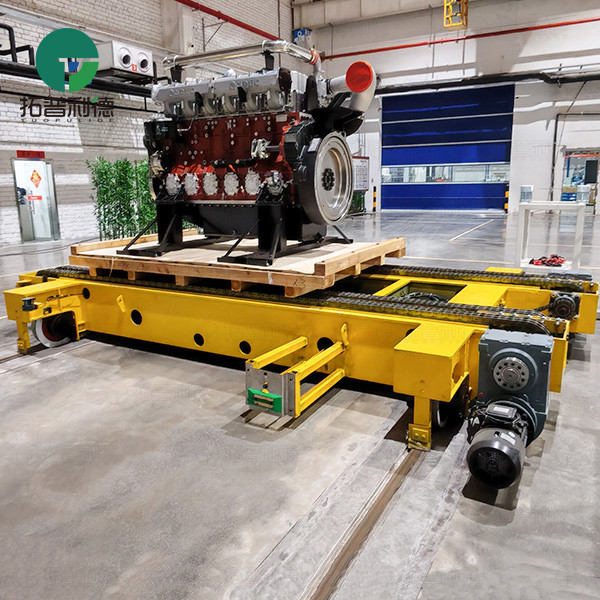

The dual-motor chain drive system provides redundant power; even if one motor needs maintenance, the equipment can still return to the charging position at low speed, ensuring production continuity.
Unlimited Distance and Precise Docking

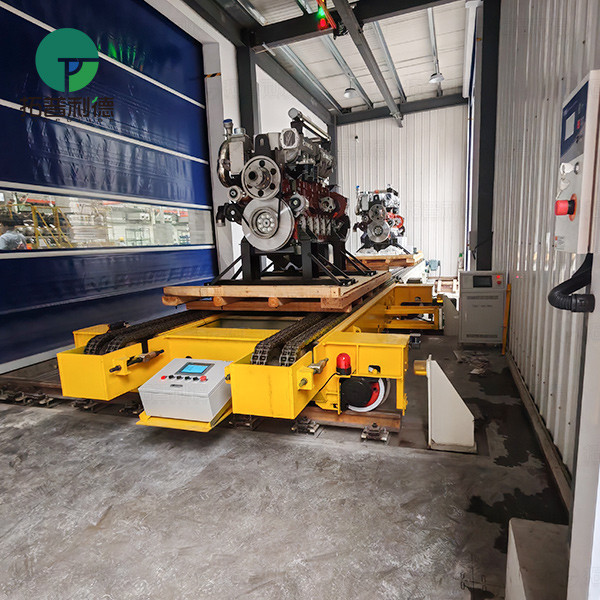

Breaks through the operating distance limitations of traditional rail-mounted transfer carts caused by battery capacity or voltage drop of the sliding contact line.This rail guided vehicle is equipped with a lithium battery pack, and with the intelligent charging stations deployed along the line, it can automatically recharge at standby workstations or during work breaks, enabling 24 hours uninterrupted cross-workshop operation.

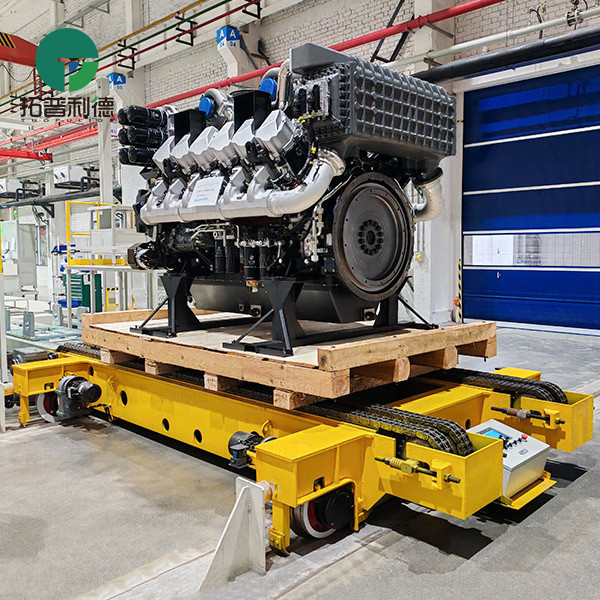

Simultaneously, the chain conveyor mechanism, combined with an intelligent coding system, achieves component docking accuracy of ±5mm, easily handling precise connections between large truck components and assembly lines, welding robots, and flipping fixtures.
Intelligent Control and Multiple Safety Features
| Function Module | Core Configuration | Main Advantage |
| Safety Collision Avoidance | Industrial-grade laser sensor | Forward micro-range active ranging, safe deceleration braking |
| Audio and Visual Warning | Three colors warning light and LED display | Real-time feedback on operating status and fault codes |
| Control Modes | Wireless remote control / Wired handle / Touchscreen | Supports integration with factory MES/WMS system for convenient operation |
| Visual Monitoring | Intuitive battery level display | Prevents over-discharge, extremely low maintenance cost |
| Precise Docking | Integrated PLC control system | Millimeter-level repeatable positioning accuracy |
| Green and Efficient | Low-carbon lithium battery power supply | Zero emissions, low noise, fully meets green factory standards |
Primarily used in machinery manufacturing workshops, it is optimized for heavy duty material handling scenarios such as transporting large truck components. With stable operation and precise docking, it is a practical and efficient rail transport device for medium and large-scale manufacturing workshops.
Product Information:
- Model: RGV-15T
- Load: 15 tons
- Size: 3500*4200*560mm
- Power Mode: Lithium Battery
- Control: Remote Control
- Running Speed:0-6m/min
