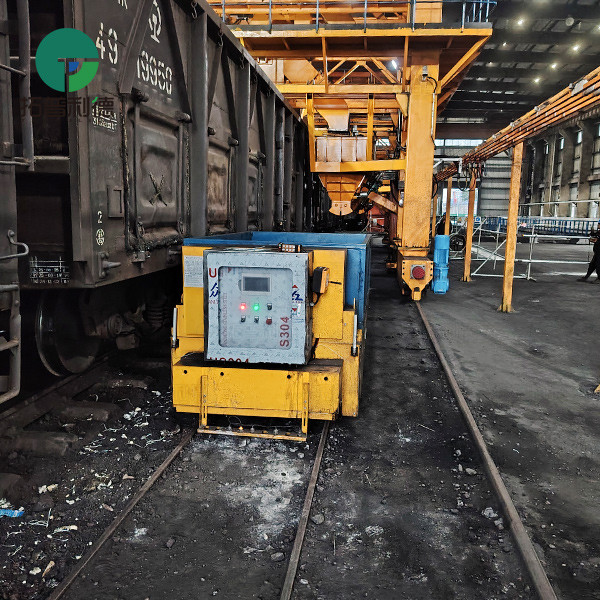

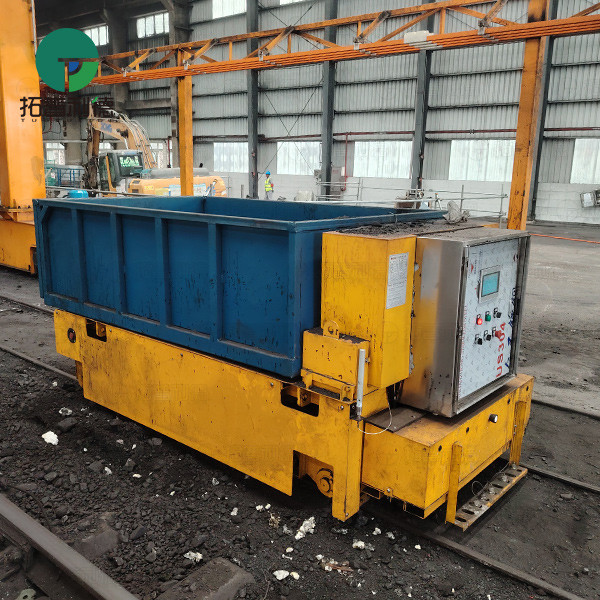

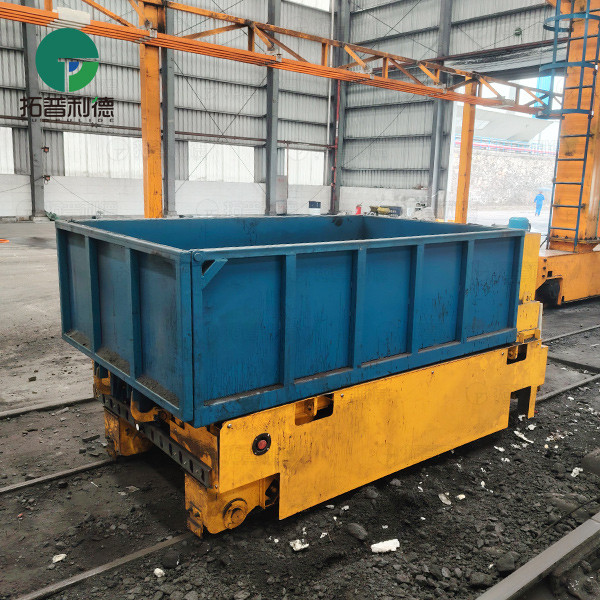

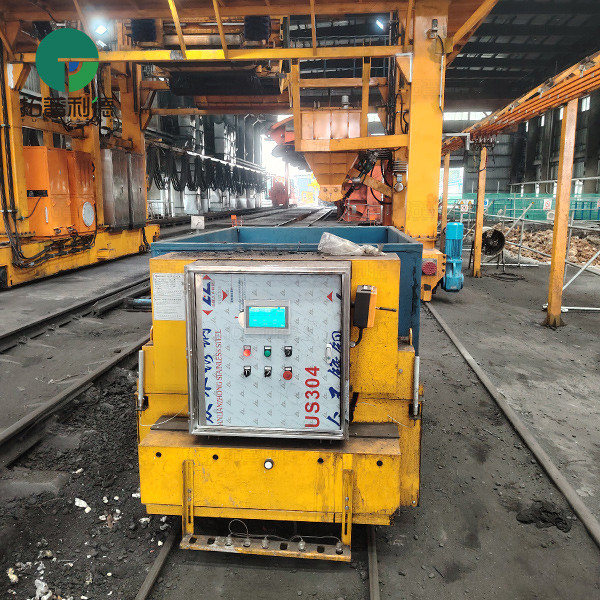

2 Tons Electric Rail Guied Vehicle for Coal Transportation

Product Brief

In coal plants, the handling and transfer of crushed coal slag often faces challenges such as high dust levels, low efficiency, and limited operating distances. Our 2 tons RGV (Rail-Guided Vehicle) is specifically designed for this scenario.
Sturdy Structure, Worry-Free Heavy Load
The rail guided vehicle utilizes a box-girder frame, coupled with a customized platform and hydraulic lifting carriage, ensuring high strength and impact resistance. The hydraulic lifting mechanism precisely connects to the crusher's discharge port, reducing spillage and dust.

Continuous Operation, No Distance Limits
Unlike battery powered equipment, this rail guided vehicle draws power from a ground control cabinet, carbon brushes, and conductive columns. Combined with insulated wheels to eliminate static electricity and stray current hazards, it enables continuous operation along the track—unlimited time and distance, meeting the long-distance, all-weather transfer needs of coal plants.
Intelligent Control, Safe and Convenient
Equipped with an LED display screen showing real-time load and operating status; wireless remote control operation allows one person to complete material handling, movement, and unloading. Audible and visual warning lights actively alert during movement and lifting, ensuring the safety of personnel and the vehicle.

Environmentally friendly and efficient, tailor-made.Fully electric drive, zero emissions. Customized cargo box dimensions and platform layout to suit different coal plant processes. From power supply protection to hydraulic control, every step is designed with "ease of use, durability, and cleanliness" in mind.

Product Information:

• Model: KPDZ-2T
• Load: 2 tons
• Size: 1800*800*1000mm
• Power Mode: Low Voltage Railway
• Control: Remote Control
• Motor: DC Motor
• Running Speed:0-18m/min
