5 Tons Coil Rail Guided Vehicle Material Handling

Product Brief

Product Overview
The mobile cable powered 5 tons rail guided vehicle (RGV) is an intelligent logistics equipment specifically designed for the cross-zone handling of coil materials in production workshops. With a box-girder frame and a customized platform as its core, it integrates mobile cable power technology and multiple intelligent configurations, providing an efficient, safe, and eco-friendly transfer solution for heavy coil materials.

Structure
The vehicle adopts a high strength box-girder frame to ensure stability under heavy loads.

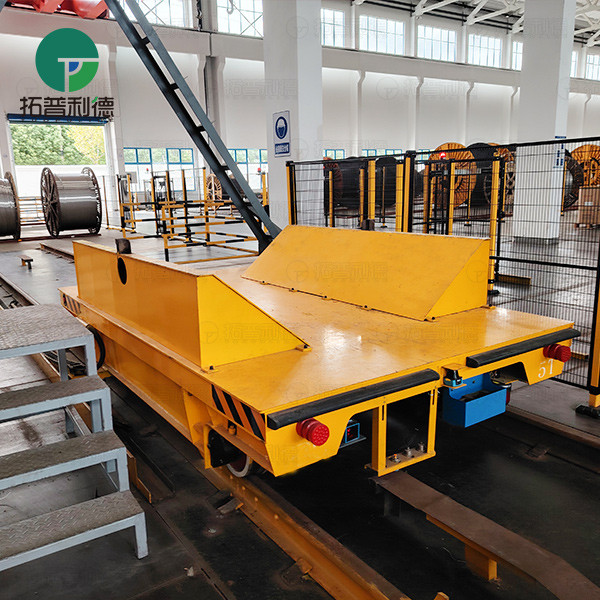

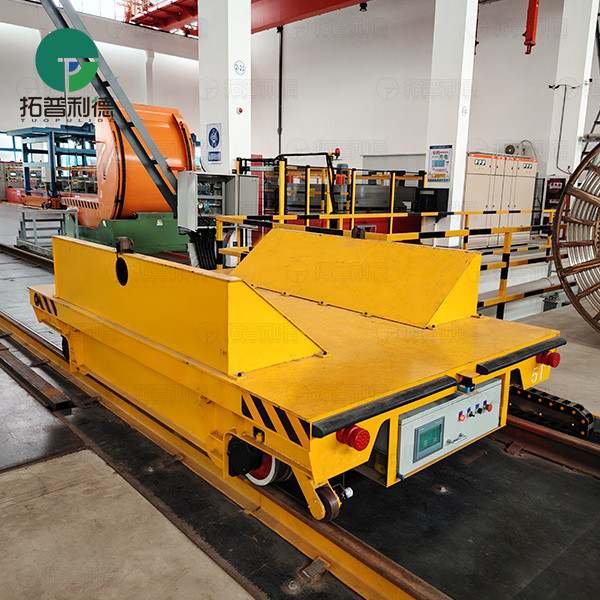

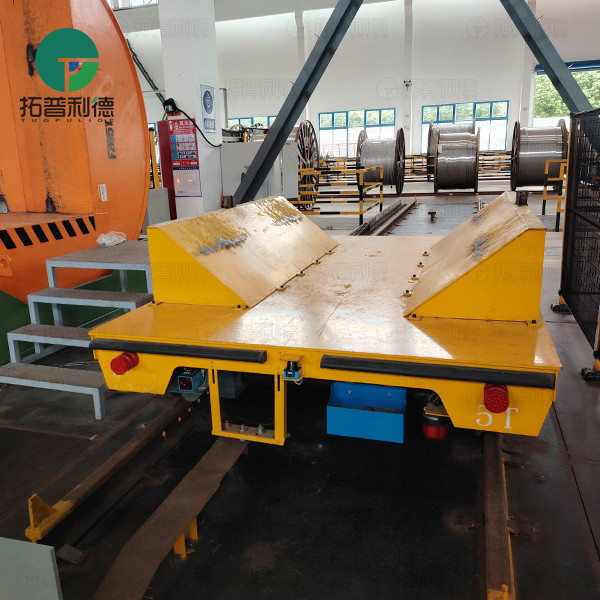

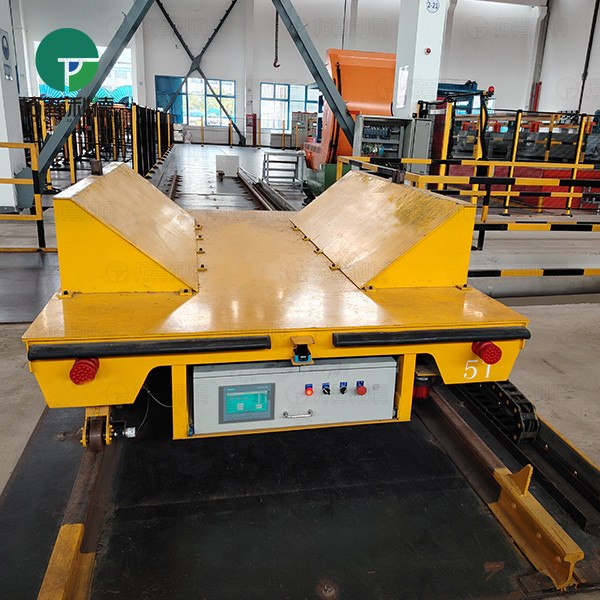

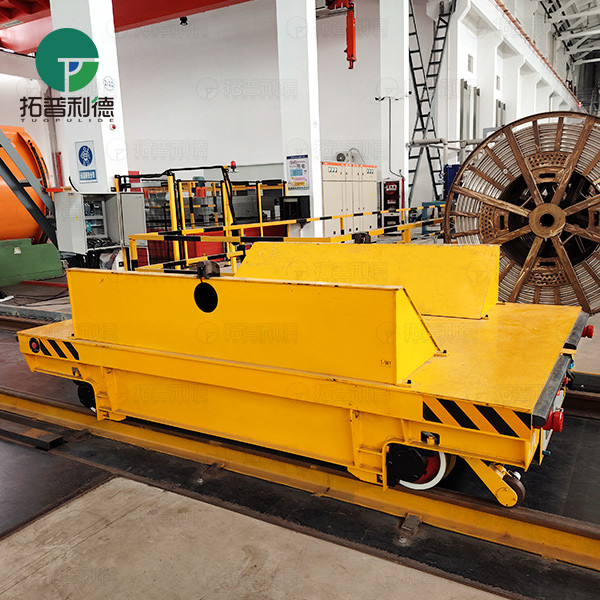

The platform is equipped with customized removable V-shaped racks, perfectly adapting to the curved structure of coils to prevent rolling or shifting during transfer. The V-shaped racks support quick detachment, allowing flexible switching between flat and curved load-bearing modes.
The cable, combined with a drag chain and fixed cable troughs for power supply, enables 24/7 uninterrupted operation, completely eliminating endurance limitations. Its high-temperature resistance (-10°C to 65°C) allows it to adapt to complex workshop environments.

Advantages
Intelligent Control: Equipped with wireless remote control and a PLC encoder control system, enabling precise remote operation by a single operator. The LED screen displays real-time operational parameters. Laser dead man stop (5 meters warning zone), audible and visual alarm lights, and safety bumpers form a triple safety protection system, with a response time of ≤0.5 seconds.
Smart and Flexible Operation: Supports wireless remote control and PLC encoder control system, enabling precise positioning, route memory, and multi-vehicle scheduling. The LED screen provides real-time status and fault prompts, facilitating remote monitoring and maintenance.
Customization and Adaptability: Rail guided vehicle offers removable V-shaped racks and customized platforms to accommodate the securing and handling of coils of various specifications, significantly enhancing site adaptability and task flexibility.

Applications
Within large metal forming workshops, this RGV can transport heavy steel coils from storage areas across different work sections to stamping or slitting production lines along fixed rails. The adaptive fixation of coils by the V-shaped racks avoids the safety risks and efficiency issues associated with crane handling. Its cable power supply mode ensures stable operation even in high-temperature and dusty environments, significantly improving logistics continuity and production capacity utilization.

Product Information:

• Model: RGV
• Capacity: 5 Ton
• Power: Mobile Cable Powered
• Table Size: 2000x1200x600mm
• Running Speed: 0-20m/min
