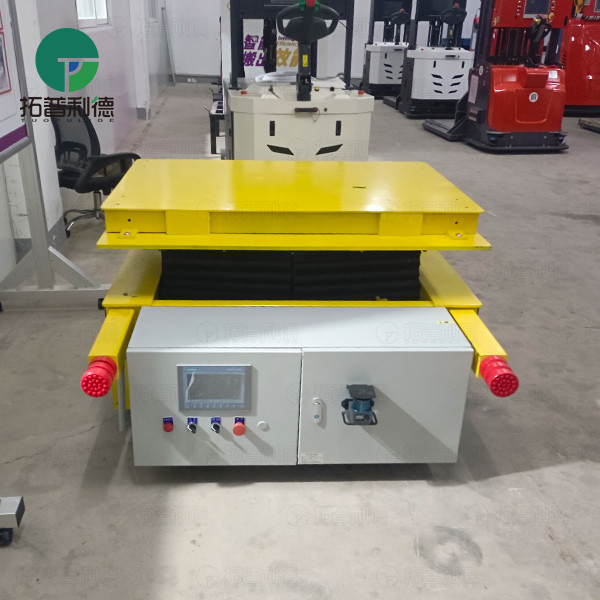

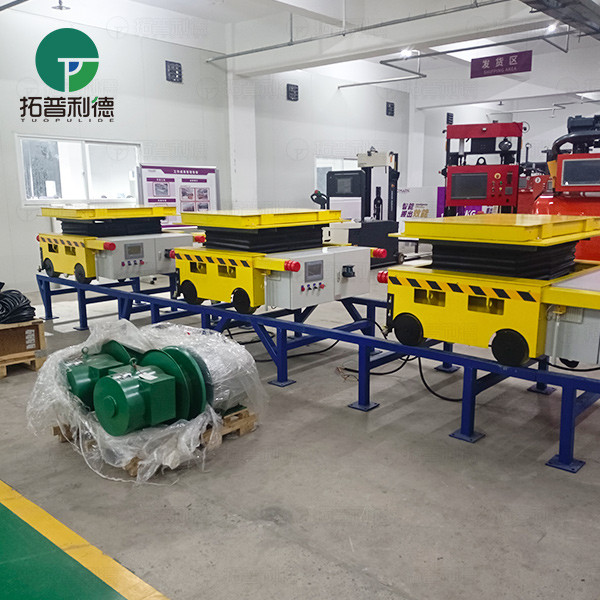

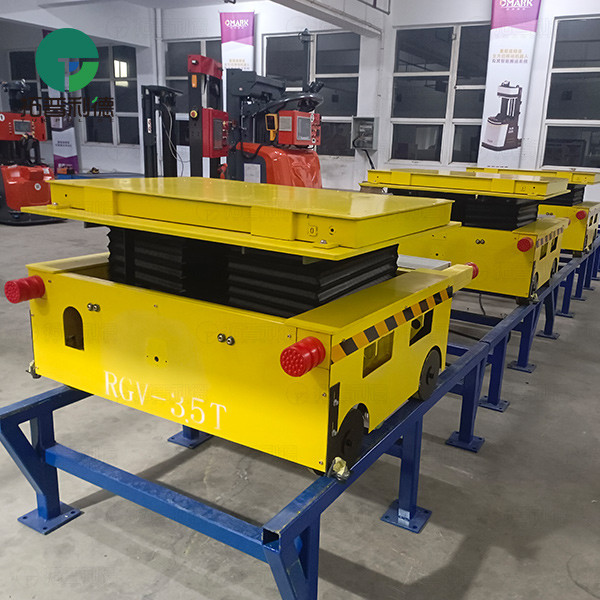

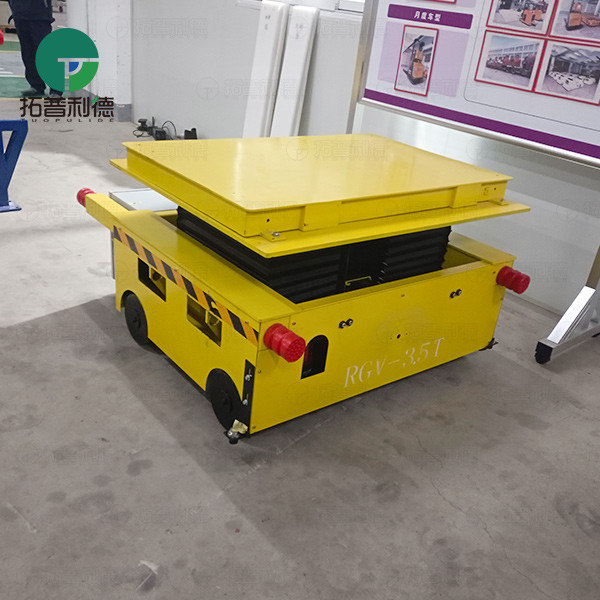

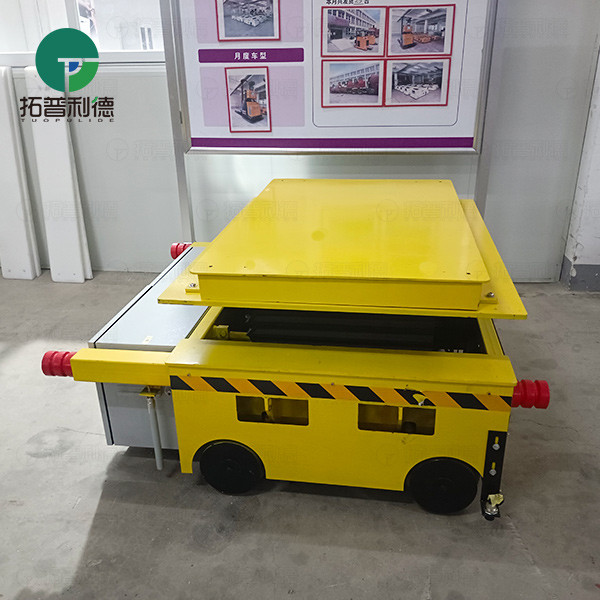

3.5 Tons Cable Powered Rail Guided Vehicle with Hydraulic Lifting Table

Product Brief

The cable powered rail guided vehicle (RGV) is a heavy duty rail transport device designed for automated material handling on manufacturing production lines. It can be widely used for the efficient transfer of materials, workpieces, parts, and semi-finished products between workstations.

To ensure ease of operation and safety in complex production environments, the vehicle is equipped with a wealth of industrial-grade accessories:

• Control and Display: Equipped with both wired and wireless remote controls, operation is quick and easy. An integrated LED display screen on the vehicle body provides clear visibility of operating status and fault information.
• Intelligence and Precision: The rail guided vehicle features a built-in intelligent control system and can be optionally equipped with a laser sensor device for continuous monitoring and instantaneous emergency stops. An optional hydraulic lifting platform facilitates automatic workpiece loading and unloading.
• Comprehensive Protection: During operation, continuous audible and visual warning lights, safety edges, and shock-absorbing buffers provide physical-level collision protection. Combined with the superior wear resistance of cast steel wheels, this ensures rock-solid stability during rail travel.

Advantages

• No Operating Time Limits: The rail guided vehicle powered directly by cable and equipped with an automatic cable reel, it completely eliminates the limitations of battery life, supporting 24-hour continuous high frequency operation.
• Heavy Load and High Customization: This cable powered rail guided vehicle boasts strong load-bearing capacity and supports comprehensive non-standard customization based on workshop layout, tonnage requirements, and workpiece dimensions.
• High Efficiency and Environmental Protection: Electrically driven, with zero exhaust emissions and low operating noise, it meets the standards of green and smart factories.

Leveraging its environmentally friendly energy supply, high-efficiency operation, heavy load capacity, and high customization capabilities, this cable powered rail guided vehicle helps manufacturing companies optimize production logistics processes, improve material handling efficiency, and drive the upgrading of workshops towards intelligence and continuous operation.

Product Information:

• Model: RGV
• QTY: 1 set
• Capacity: 3.5 Ton
• Power: Cable powered
• Table Size: 1000x1250x500mm
• Lifting Height: 200mm
• Running Speed: 0-20m/min
