20 Tons Coil Handling Transfer Cart for Production Workshop
Production Challenge
In a large manufacturing plant, steel coils require frequent transport from the production line to the storage area. Due to the heavy weight of each coil and the high frequency of transport, traditional forklifts and conventional material handling equipment not only suffer from limited efficiency but also often experience unstable operation and significant swaying during movement.
Solution
To address the customer’s specific needs, we designed this 20 tons mobile cable powered coil handling transfer cart. The cart features a box beam frame structure, which enhances overall rigidity and ensures long term stability under heavy loads.
Core Power System: The cart is powered by a mobile cable system, equipped with a fixed cable guide channel and a drag chain to prevent cable wear, enabling 24/7 uninterrupted operation.

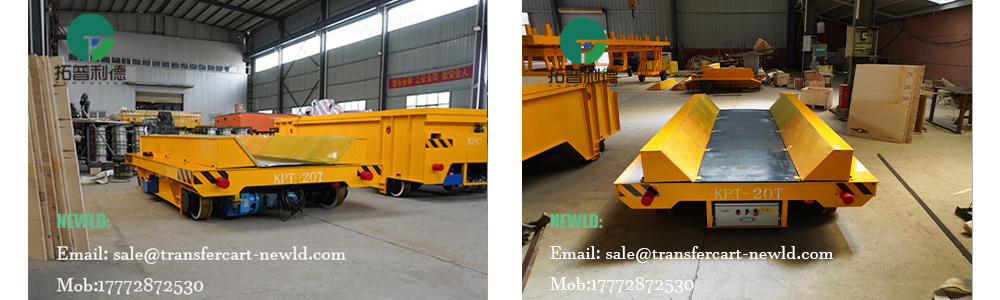

Customized Design: To accommodate the rolling tendency of coil materials, the deck is fitted with removable V shaped cradles. Additionally, a cushioning and shock absorbing system is integrated into the drive mechanism, ensuring smooth starts and stops without impact.
Advantages
This coil handling transfer cart offers high temperature resistance, large capacity, and stable operation. The shock absorbing system effectively reduces impact forces during transport, while an audible and visual warning light enhances workplace safety.
The removable V -shaped cradles make the cart highly adaptable for coil handling applications, meeting diverse operational needs. Moreover, the cart is environmentally friendly, requiring no fuel consumption, aligning with the energy saving and emission reduction trends in modern manufacturing facilities.
Application
The coil handling transfer cart is primarily responsible for the automated pickup of steel coils at the end of the production line. Operators use a wireless remote control to precisely position the cart at the loading station. After the coil is securely placed in the V -shaped cradles, the cart moves steadily along the preset track to the storage area. Thanks to the customized box girder structure, even under full load, the cart’s trajectory deviation remains within an extremely low range.
This custom designed coil handling transfer cart optimizes overall logistics flow through its efficient and stable operation, providing solid support for production continuity.
