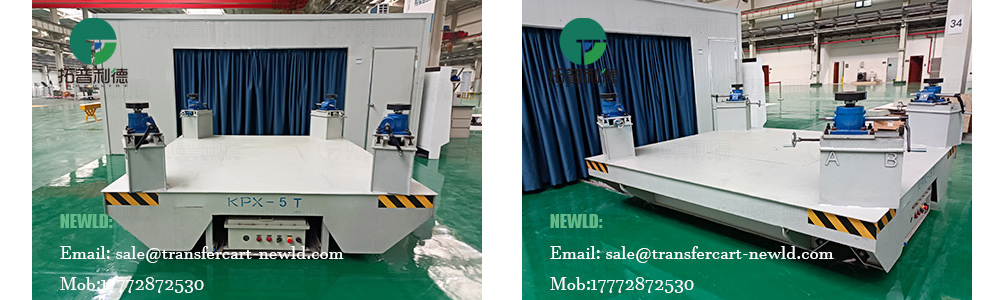

5 Tons Explosion Proof Battery Powered Rail Transfer Cart for Workshop

Production Challenge
In the paint stripping and cleaning workshop of a large rail transit equipment manufacturer, a long-standing challenge exists in handling 5-ton frames. Traditional wired rail transfer carts, constrained by fixed power lines, cannot operate flexibly in humid, dust-laden environments such as paint stripping and high pressure cleaning areas.
Conventional handling equipment lacks explosion proof and waterproof capabilities, posing risks of short circuits and dust explosion hazards. Furthermore, the fixed support columns cannot accommodate frames of varying heights, requiring repeated lifting during paint stripping and resulting in low efficiency.

Solution
Introduction of a 5 tons battery powered rail transfer cart, featuring a completely contactless power supply and dual-mode control (wireless remote， wired handle), eliminating distance limitations.
Core components include an IP65 explosion proof integrated control box and a Class F explosion-proof motor, ensuring safe operation in paint stripping and cleaning areas.
The support columns are upgraded to a screw-thread manually adjustable structure (self-locking at any height from 635 mm to 1016 mm), with a mechanical limit at the highest point.
Cast steel wheels combined with an I-shaped bottom structure ensure stable heavy duty operation. Safety features such as an emergency stop button, audible and visual alarm, and battery level display are incorporated to ensure operational safety.

Advantages
Zero emission, eco-friendly: High-efficiency heavy-load capacity of 5 tons, suitable for grinding, water spraying, and explosive environments.
Explosion-proof casing, IP65 protection, Class F insulation: Battery powered rail transfer cart meets stringent paint stripping and cleaning requirements.
Customizable deck and manually adjustable columns: Transfer cart adapts to various frame sizes.
Dual control options (wireless remote and wired handle) with emergency stop button:Ensures the safety of both the transfer cart and the production workshop in emergency situations.

Application
In the paint stripping shop, workers use the wireless remote control to precisely position the 5 tons frame at the grinding station. The columns are adjusted to the required height and self-locked, enabling 360° paint stripping without the need for lifting. After cleaning, the cart moves directly to the assembly area. The entire process requires no charging stations or busbars, preventing dust accumulation and electrical sparks.
