5 Tons Pump Industry Battery Rail Transfer Cart in Workshop

Production Challenges

In this pump factory workshop, traditional transport equipment was limited by cable length, making long distance cross-area operation impossible during material transfers. Furthermore, the complex layout of the factory, narrow right-angle turning areas, and the diverse materials made it difficult for ordinary rail vehicles to achieve 90-degree turns, resulting in low material turnover efficiency and safety hazards.

Solution

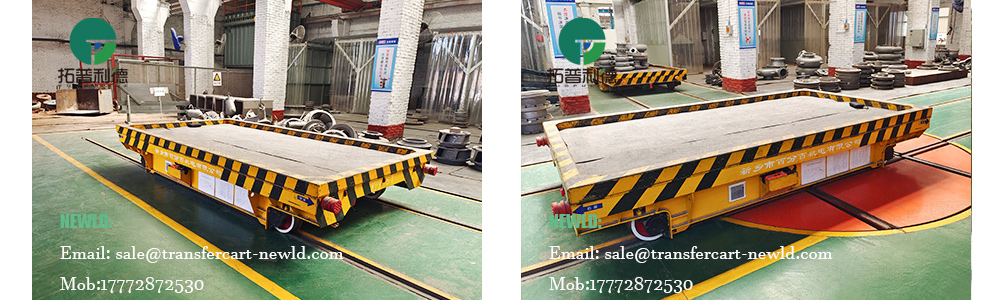

Based on the customer's needs and actual application scenarios, we customized this 5 tons battery powered rail transfer cart system.

Structure and Configuration: The battery rail transfer cart body uses a high-strength box-beam frame, providing strong load-bearing capacity and resistance to deformation; it is equipped with a customized platform with anti-slip protrusions around the edges to ensure material stability.

Core Components: It uses robust cast steel wheels and offers both wired handle and wireless remote control modes. The cart body integrates audible and visual warning lights, a power display screen, an emergency stop button, and a shock absorption system, ensuring comprehensive operational safety.

Advantages

Green and Environmentally Friendly: Battery powered, zero emissions, low noise.

Highly Efficient Operation: Completely free from cable constraints, with no distance limitations.

Safe and Heavy-Duty: The box girder structure supports heavy loads, with multiple safety protections working in tandem.

Application
In production workshops and factory areas, this battery rail transfer cart is used in conjunction with a floor-mounted turntable. When the transfer cart reaches the center of the turntable, the turntable automatically rotates to the target angle and precisely engages with another track, solving the problem of right-angle turns in narrow spaces and enabling seamless transport of workpieces across different workshops.

This solution addresses the pain points of heavy load transportation and limited operating space for customers, improving the turnover efficiency of cross-workshop logistics. High safety features significantly reduce the risks of manual operation, helping enterprises build a green, efficient, and safe transport network.
