Customized Rail Transfer Cart Assists Shipyard in Efficient Handling of Heavy Components
Usage Challenges
At a large shipyard during vessel repair operations, due to the need for ships to be positioned close to the water, significant difficulties exist in transporting items.
The lake shore has a high slope and long distance. Traditional transfer equipment is not only limited by cable length but is also susceptible to damage.
Furthermore, repair components often include heavy duty motors and steel structural parts. Standard handling equipment lacks sufficient load capacity, and their fixed platforms cannot adapt to irregularly shaped components.
The shipyard environment features high temperatures, abundant oil stains, making equipment prone to electrical circuit failures and posing safety hazards.
Solution

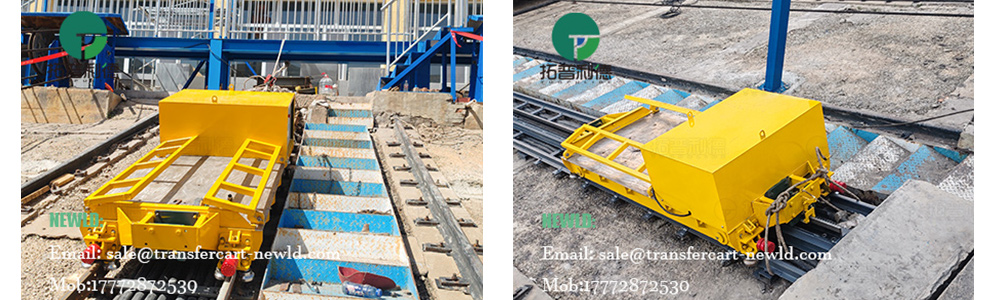

Based on the customer's operational requirements, we customized this 2 tons safety sliding line powered rail transfer cart (Dimensions: 2000*1500*600mm). The cart utilizes a safety sliding line + collector power supply system, completely eliminating cable constraints and enabling 24/7 uninterrupted long distance operation.
The body employs a cast steel welded frame and a customized platform, complemented by left and right detachable extension platforms (manually unfolded to increase the load-bearing area by 30%), easily accommodating irregularly shaped heavy duty components like motors and pipes.
Core components feature a high temperature resistant design (stable operation in -20°C to 80°C conditions), paired with anti-rollover card wheel structures and shock-absorbing buffer devices, ensuring safety in oily and bumpy environments.
Advantages
1. Heavy Duty and Efficient:2 tons rated load capacity and cast steel frame, combined with wireless remote control (effective range 50 meters), allows operation by a single person, improving handling efficiency by 60%.
2. Safe and Reliable:Audible and visual alarm lights, emergency stop button, and tow hook interlock design enable shutdown within 3 seconds in case of an emergency.
3. Environmentally Friendly and Economical:Rail power supply results in zero emissions, reducing energy consumption costs by 40% compared to fuel-powered forklifts.
Application
This rail transfer cart has been applied in the shipyard's power system maintenance scenarios: During ship main engine replacement operations, it successfully carried a 2 tons class generator via the extended platform, transporting it steadily along the preset track into the ship's hold.
Used in conjunction with the tow hooks, it enabled multi-cart coordinated transport for the assembly of hull block sections.
Its high temperature resistance and long endurance characteristics perfectly suit the complex working conditions of the shipyard. It has now become a core piece of equipment for point-to-point transportation between the "dry dock - workshop" areas within the shipyard.
