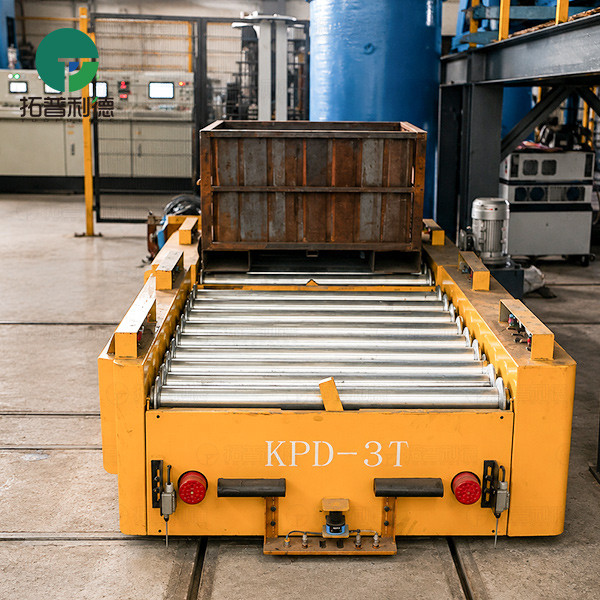

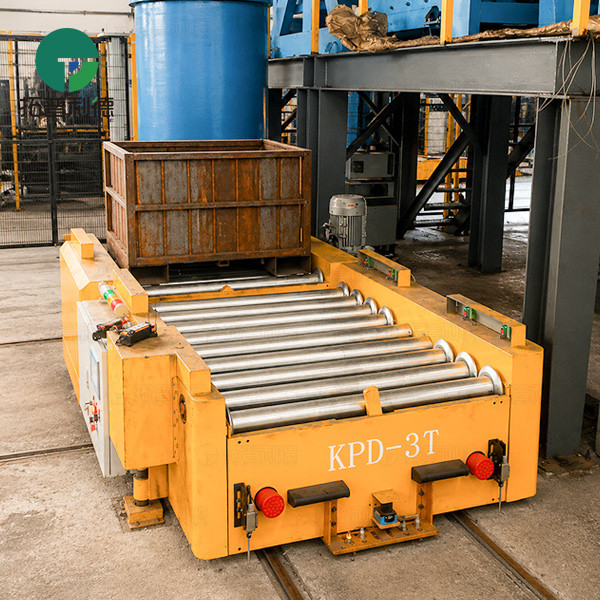

Rail Guided Vehicle with Roller Table for Automated Bin Transfer

Product Brief

This rail guided vehicle uses a customized platform with roller conveyors, which can be adjusted according to the workstation layout, material bin size, and the actual height of the docking equipment.The power supply system is fed through the rails from a ground control cabinet. The vehicle draws power from insulated wheels, carbon brushes, and conductive posts, allowing for unlimited operating distance. The vehicle body size and platform functions can be flexibly customized according to the workshop's rail layout.

Advantages

• Heavy-Duty And Environmentally Friendly: The 3-ton rated load covers most parts bin transfer needs. Low voltage rail power supply results in no exhaust emissions and no battery waste pollution, making it suitable for long-term continuous operation in enclosed workshops.
• High Docking Accuracy: The customized roller platform is aligned with the production line rollers at the same height. Combined with laser sensors and safety contact edges, the RGV automatically completes material bin transfer after stopping, reducing manual adjustments during the docking process.
• Safe and Convenient Operation: Supports wireless remote control, wired handle, and PLC intelligent system control. Audible and visual warning lights and shock absorption devices provide dual protection during vehicle operation and docking, reducing the risk of human-machine interaction.

Application

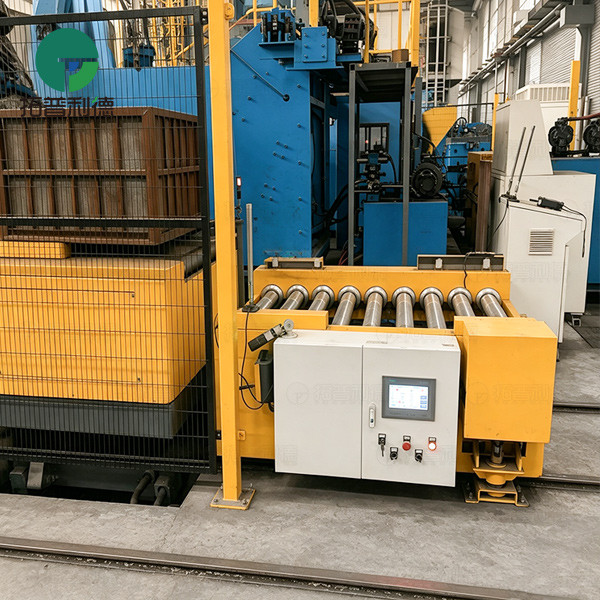

This rail guided vehicle is used for transporting material boxes in automated parts production workshops, docking with various processes and supporting conveyor equipment on the production line to ensure uniform docking height.

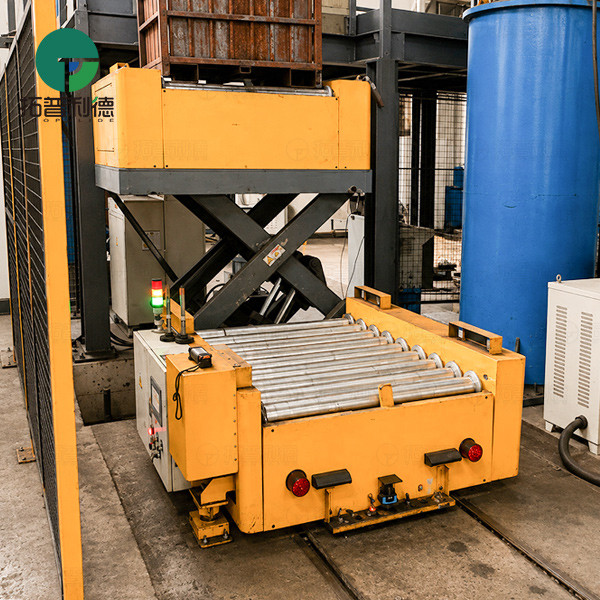

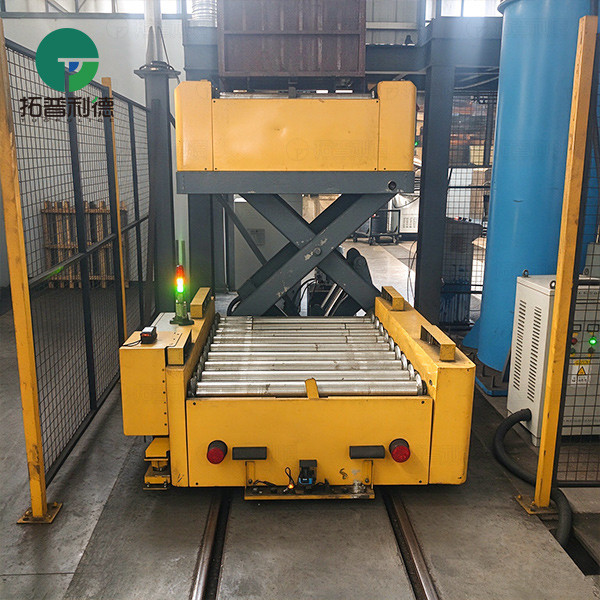

After the RGV travels along the preset track to the target workstation, the hydraulic lifting platform fine-tunes its height to align the rollers. The platform rollers then activate, smoothly inserting or removing the material box from the production line.

Operators complete vehicle calls and workstation confirmation through the intelligent control system, eliminating the need to enter the track area to handle material boxes throughout the process.

The rail guided vehicle minimizes human intervention in the material box docking process. The transfer rhythm is driven by the production line cycle, improving efficiency while eliminating the safety hazards of manually handling heavy material boxes.

Product Information:

• Model: RGV
• QTY: 1 set
• Capacity: 3 Ton
• Power: Low Voltage Railway powered
• Table Size: 1500x1360x500mm
• Accurate Docking: Available
• Running Speed: 0-20m/min
