2 Tons Customized Steerable Transfer Cart for Insulation Board

Production Challenges

The insulation panels in the refrigeration workshop are large and heavy. Traditional handling equipment, limited by cables and tracks, can only operate in fixed areas and cannot handle cross-area transfers from the workshop to the outdoors. Conventional equipment experiences sluggishness and stiff steering under heavy loads, resulting in low transport efficiency and a high risk of panels shifting and slipping.

Solution

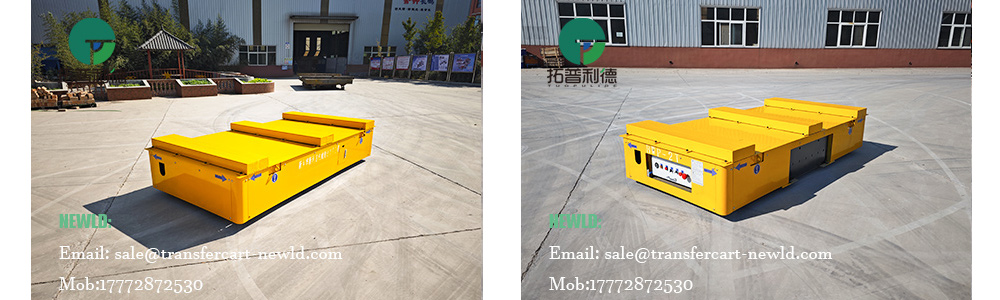

Based on the customer's needs, Newld designed this 2 ton battery powered steerable transfer cart. The cart features a cast steel frame and polyurethane wheels, allowing for smooth movement both indoors and outdoors without the need for tracks.

Addressing the large size and slippage risk of the insulation panels, an adjustable baffle is added to the platform for stable fixation. Equipped with both wireless remote control and wired handle dual control modes, workers can start, stop, and steer from a safe distance. Audible and visual warning lights and an emergency stop button provide dual protection, handling complex terrain with ease.

A backup battery pack supports uninterrupted rotation, completely eliminating range anxiety.

Core Advantages

• Flexible Operation: The trackless design allows for free steering, easily navigating narrow workshop doors and outdoor ramps.
• Heavy Duty Stability: The cast steel frame can withstand 2 tons, and the polyurethane wheels offer high elasticity, wear resistance, and shock absorption, effectively preventing damage to insulation panels during transport.
• High Efficiency Battery Life: The steerable transfer cart is equipped with a backup battery; replacement is simple and convenient, and adjustments can be made promptly when the battery is low, meeting the demands of 24/7 cross-area transport.

Applications
This 2 tons steerable transfer cart is currently in use in several refrigeration companies, specifically for the indoor-outdoor cross-area transport of insulation panels. With its precise and controllable operation and stable panel securing effect, the entire transport process is smooth and lossless, adaptable to the complex operating environment of refrigeration workshops.
After loading the insulation panels, the transfer cart is guided wirelessly by the operator, smoothly navigating narrow workshop aisles and easily completing the transport process from the workshop to the outdoor storage area.
