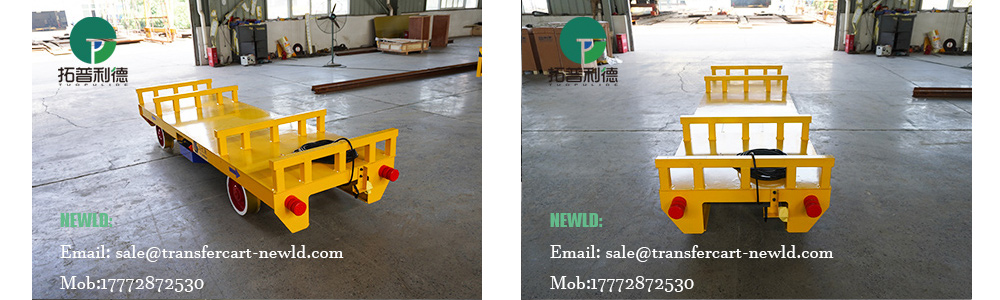

3 Tons Rail Transfer Cart with Outriggers in Manufacturing Plant

Production Challenges

A smart equipment manufacturing plant frequently needs to transfer raw materials, processed workpieces, and finished equipment between different production areas. Due to the weight of the materials transported within the workshop, traditional manual handling methods are inefficient and pose high labor intensity and safety risks.

Solution

To address the client's specific needs, Newld customized this 3 tons mobile cable powered rail transfer cart solution. Utilizing a box-girder frame structure to ensure heavy duty load-bearing capacity, the track dimensions and platform size were customized according to the workshop layout. Support legs were added to the customized platform to provide auxiliary fixation for materials during transport, perfectly matching the client's material, workpiece, and finished product transport requirements.
The rail transfer cart is equipped with a mobile cable power supply system. Cable chains protect and organize the cables, enabling continuous equipment operation and solving the limitations of traditional power supply methods.

Advantages

• High Efficiency and Environmental Protection: This rail transfer cart uses mobile cable power, has no time restrictions, is environmentally friendly and pollution-free, and fully meets the requirements of heavy duty, high efficiency production.
• Sturdy Structure: The rail transfer cart is equipped with cast steel wheels and a shock-absorbing structure, ensuring smoother and more durable operation. It supports both wireless remote control and wired handle control for convenient operation, and the addition of audible and visual warning lights and an emergency stop button significantly enhances safety.

Applications

After installation, Newld provides on-site training for customer operators.

In actual use, workers can easily operate the vehicle using only a wireless remote control or handle, moving it from the raw material area to the processing area and then to the finished product storage area. The platform support legs design securely hold irregularly shaped workpieces, ensuring stable transport.
