Customized 0.45 Tons Automated Guided Vehicle for Workshop

Production Challenges

In the sophisticated assembly lines of modern industrial workshops, traditional material handling equipment is often limited by confined space and power supply interruptions, making it difficult to achieve high frequency, precise equipment mounting and workpiece transfer. Frequent battery changes or constraints from traditional tracks can easily cause production disruptions and workstation misalignment.

Solution

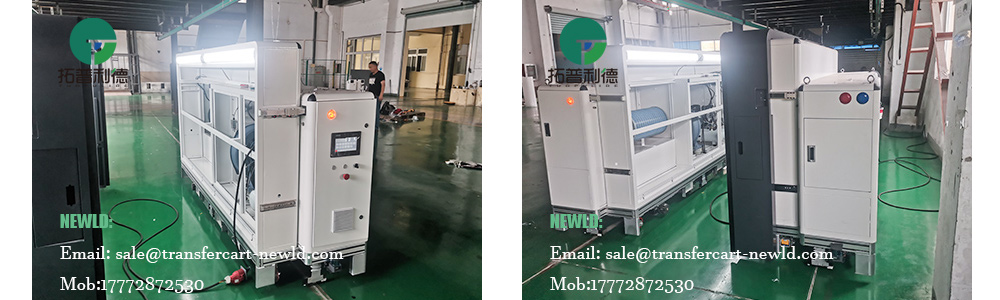

Based on the client's transfer needs, Newld customized two sets of 0.45 tons cable powered trackless Automated Guided Vehicles(AGV).

• Structure and Dimensions: Utilizing a box-girder frame, the overall dimensions are precisely crafted to 2800×800×280 mm, making it compact and perfectly integrated into narrow aisles.
• Drive and Control: Equipped with a steering wheel system and PLC intelligent control, coupled with cable reel power supply, it completely eliminates concerns about operating distance and range.
• Dedicated Interface Design: Customized platform with pre-reserved professional interfaces allows for direct installation of client-specific equipment, achieving millimeter-level automated forward and backward movement.
• Comprehensive Safety Protection: Integrated with a laser sensor, emergency stop button, LED display, and audible and visual warning lights, supporting both wireless remote control and wired handle control.

Advantages

• Flexible Operation: The trackless structure eliminates the need for fixed tracks, allowing for flexible adjustment of the operating area to suit existing workshop floor conditions; the box-girder frame balances load-bearing capacity and overall stability, making it suitable for heavy-duty equipment transport.
• Applicability: Continuous cable power supply reduces downtime caused by frequent charging, while dual-vehicle configurations can match the transport needs of different workstations.

Applications

This batch of automated guided vehicles is specifically designed for high-frequency docking between workshop workstations. After the vehicles are equipped with customer equipment, they move back and forth along a designated route under precise commands from the PLC system, seamlessly connecting with upstream and downstream production lines.
