Explosion Proof Electric Rail Transfer Cart for Workshop
Production Challenges
In many high-standard production workshops, especially those involving precision manufacturing, food processing, or flammable and explosive chemical environments, traditional material handling equipment often faces a triple challenge:first, conventional carbon steel frames are highly susceptible to corrosion, making it difficult to meet cleanliness requirements;second, internal combustion engines or ordinary electrical equipment pose safety hazards and cannot meet stringent explosion-proof standards;and third, frequent charging delays severely impact the continuous operation efficiency of the production line.
A manufacturing company, facing limited operating space and a unique environment when handling heavy duty workpieces, urgently needed a customized transfer tool that could operate 24/7 while providing high-precision safety protection.
Solution
To meet the client's specific process requirements, we tailored this 2 tons all-stainless steel safety sliding contact line powered electric rail transfer cart.
Energy Supply: Utilizing a Safety Sliding Line in conjunction with a current collector, it fundamentally solves range anxiety, enabling 24 hours uninterrupted operation.
Safety and Explosion Proof Configuration: The electric rail transfer cart body is equipped with an integrated explosion-proof shell, and the motor and electrical components all meet explosion-proof standards. The cart is equipped with a Laser Sensor (liquid radar obstacle avoidance) and an emergency stop button, ensuring automatic obstacle detection and rapid braking in complex dynamic environments.
Control System: Integrates a wired handle, wireless remote control, and advanced touchscreen control, allowing operators to monitor operational data displayed on the LED screen in real time.

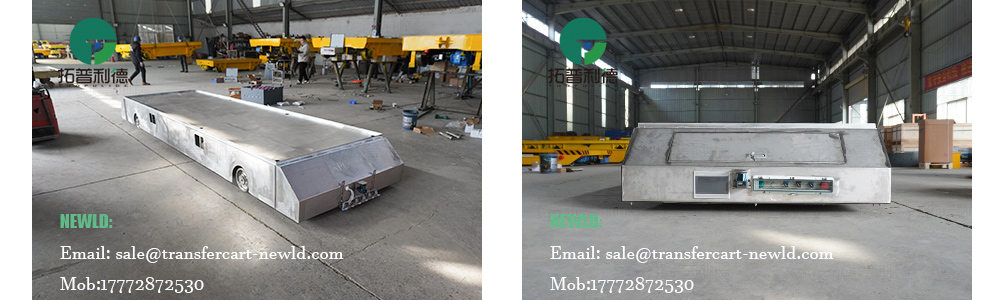

Hardware Construction: The slim 5375x1515x490mm body utilizes a box-beam frame, with the entire transfer cart and wheels constructed from cast stainless steel, offering not only wear and corrosion resistance but also significantly improved load stability.
Advantages
Unlimited Operation: The sliding contact line power supply mode breaks the limitations of operating time, making it particularly suitable for high-frequency, continuous production operations.
Ultimate Safety: Explosion proof design combined with audible and visual warning lights and laser obstacle avoidance provides multiple safety barriers for special workshops.
Corrosion Resistance: The all-stainless steel structure ensures an exceptionally long service life for the equipment in humid or special chemical environments.
Intelligent and Convenient: The touchscreen control system and automated sensors enhance the accuracy of handling and the human-machine interface experience.
Applications
In actual operation, this electric rail transfer cart mainly shuttles through the core transfer area of an automated production workshop. Because its body is made of stainless steel, it can easily handle the cleaning and disinfection processes within the workshop. Guided by rails and with limit switches enabling position setting, the equipment accurately delivers heavy duty workpieces to designated workstations, solving operational limitations such as low efficiency of manual handling and difficulty in turning around in confined spaces.
