Automatic Control Cable Powered RGV for Mold Handling
Production Challenge
A large foundry enterprise faced severe operational difficulties: a 20 meters distance between the mold workshop and the machining shop required the daily transfer of dozens of heavy molds. Traditional battery powered transfer carts needed 2 hours of charging per shift, severely impacting production cycles. Additionally, standard rubber wheels experienced rapid wear in an environment filled with hot iron chips.
Solution

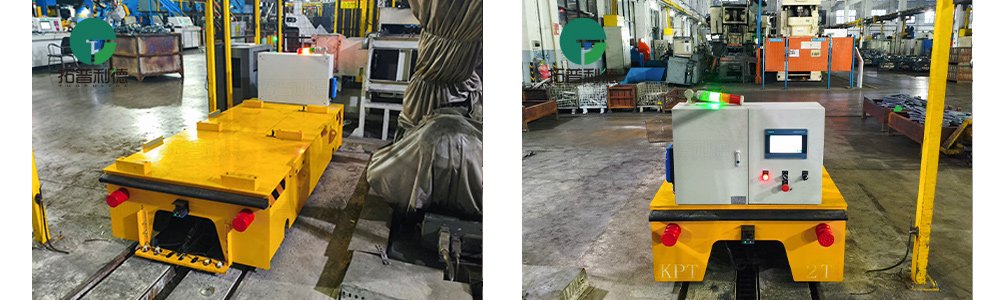

Based on the customer's operational needs and the specific site conditions, we designed this 2 tons Rail Guided Vehicle (RGV) .
The RGV utilizes a mobile cable power supply system combined with fixed cable slots and a drag chain, completely eliminating the constraints of batteries. The vehicle body features a box-girder frame and cast steel wheels, designed to withstand high temperatures and operate reliably in the hot environment. The platform is specially designed with raised brackets evenly distributed on both sides, which perfectly fit the mold's slots, ensuring stability during transport.
Advantages
Uninterrupted Operation: The cable power supply enables 24/7 non-stop operation, increasing production capacity by 25%.
Multi-Level Safety Assurance: Multiple safety devices, including a laser Dead Man Stop, safety edges, and emergency stop buttons, ensure operational safety. They enable instantaneous stopping, guaranteeing the safety of personnel and equipment in high-temperature zones.
Intelligent Control: Wireless remote control combined with intelligent coded control, with an LED screen and a three colors light providing real-time status feedback.
Customized Load Handling: The raised bracket design eliminates the need for secondary alignment during mold loading and unloading, doubling efficiency.
Application
After deployment, a fixed path from the stamping area to the welding area was preset using the intelligent coding system, enabling fully automatic mold transfer.
The vehicle is dispatched with a single click via the wireless remote. The laser anti-collision system automatically provides a warning when personnel approach, and the emergency stop button can instantly brake the vehicle in abnormal situations. The cable drag chain power supply design completely resolves the wear issues associated with traditional track power lines, achieving maintenance-free operation.
This solution not only overcomes the handling bottleneck in a high temperature, heavy load environment but also eliminates charging downtime through the cable power supply, achieving truly efficient and environmentally friendly operation.
